Brake Pedal Height, Brake Pedal Free Play, Brake Pedal Reserve Distance & Stoplight Switch
WARNING:
Read service precautions before proceeding with service procedure. See SERVICE PRECAUTIONS .

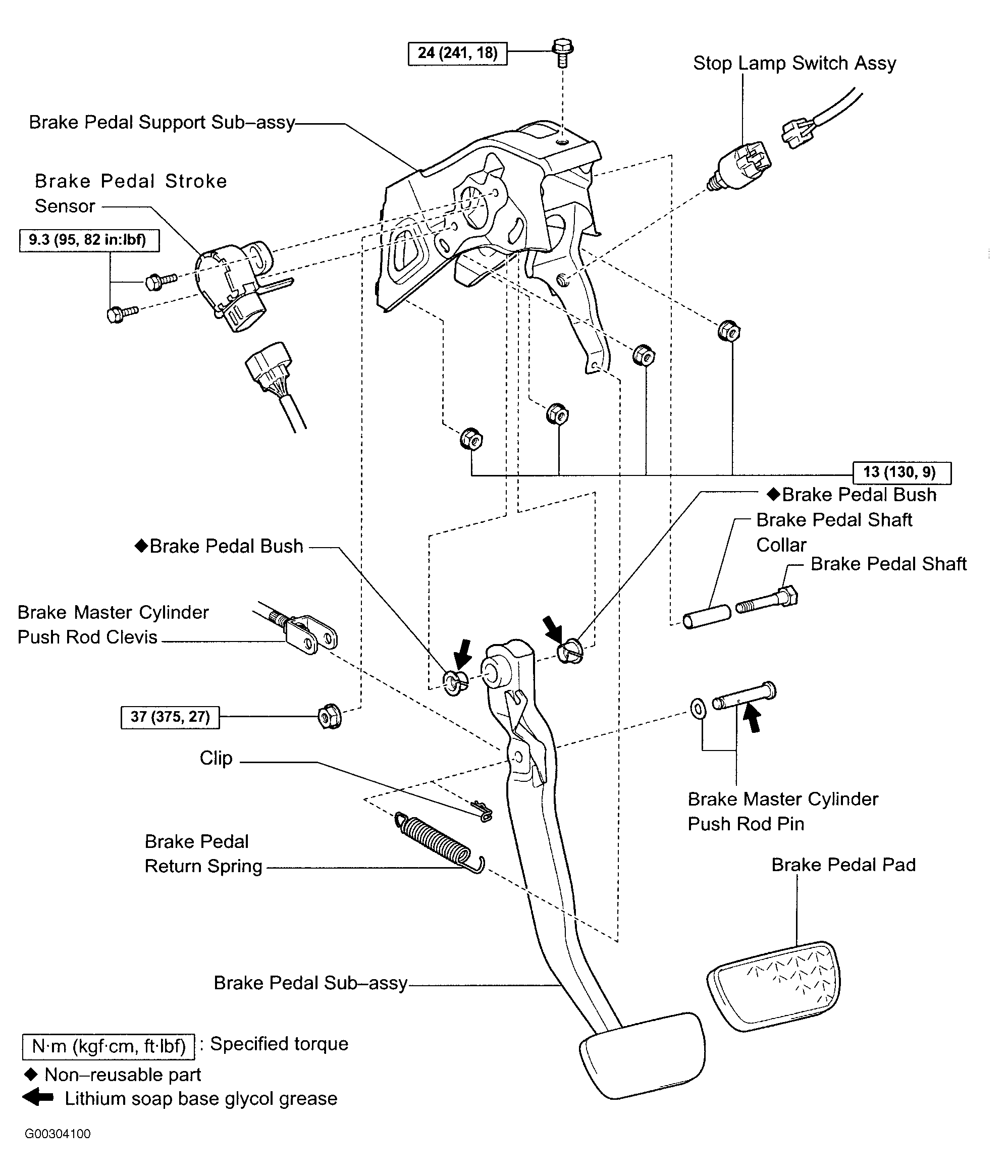

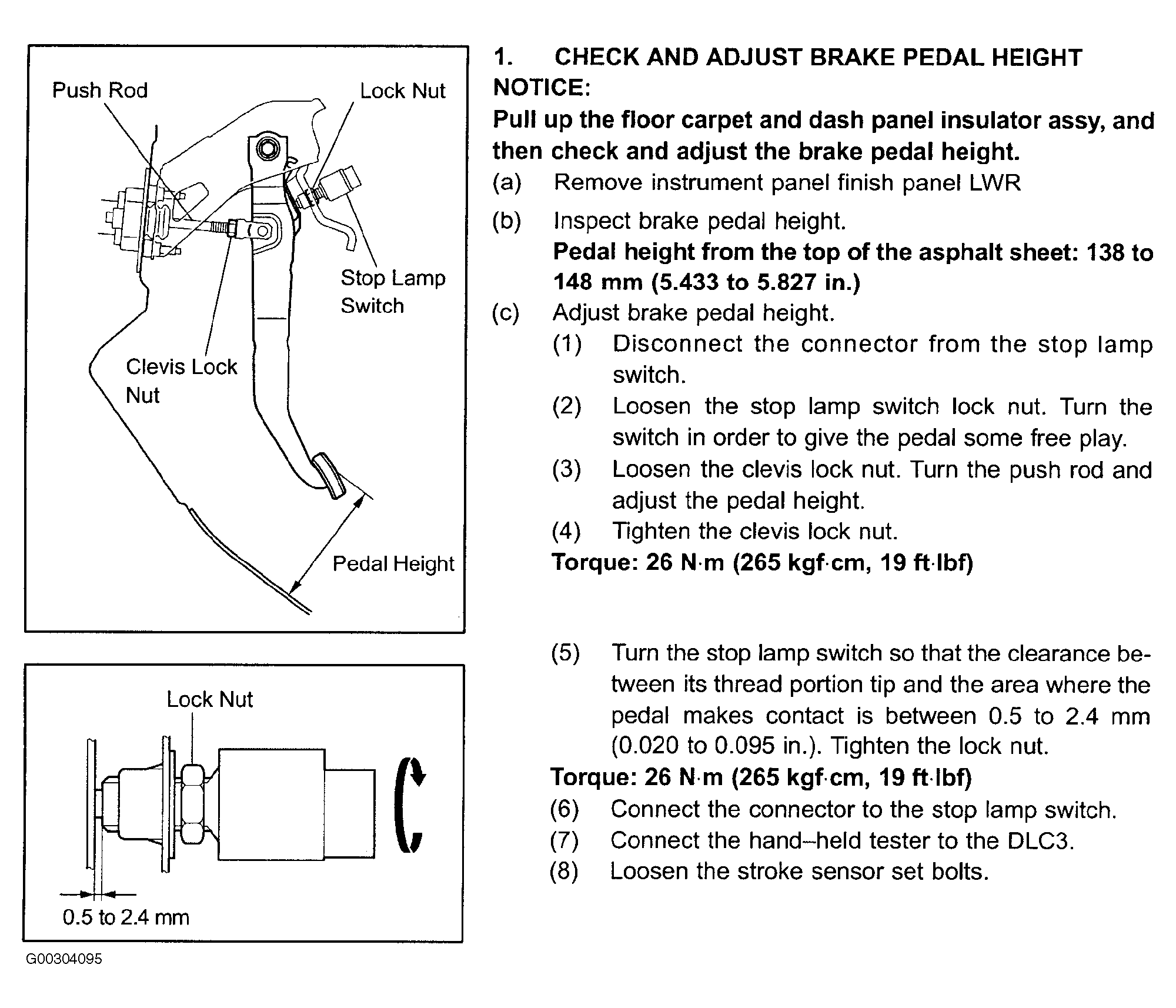

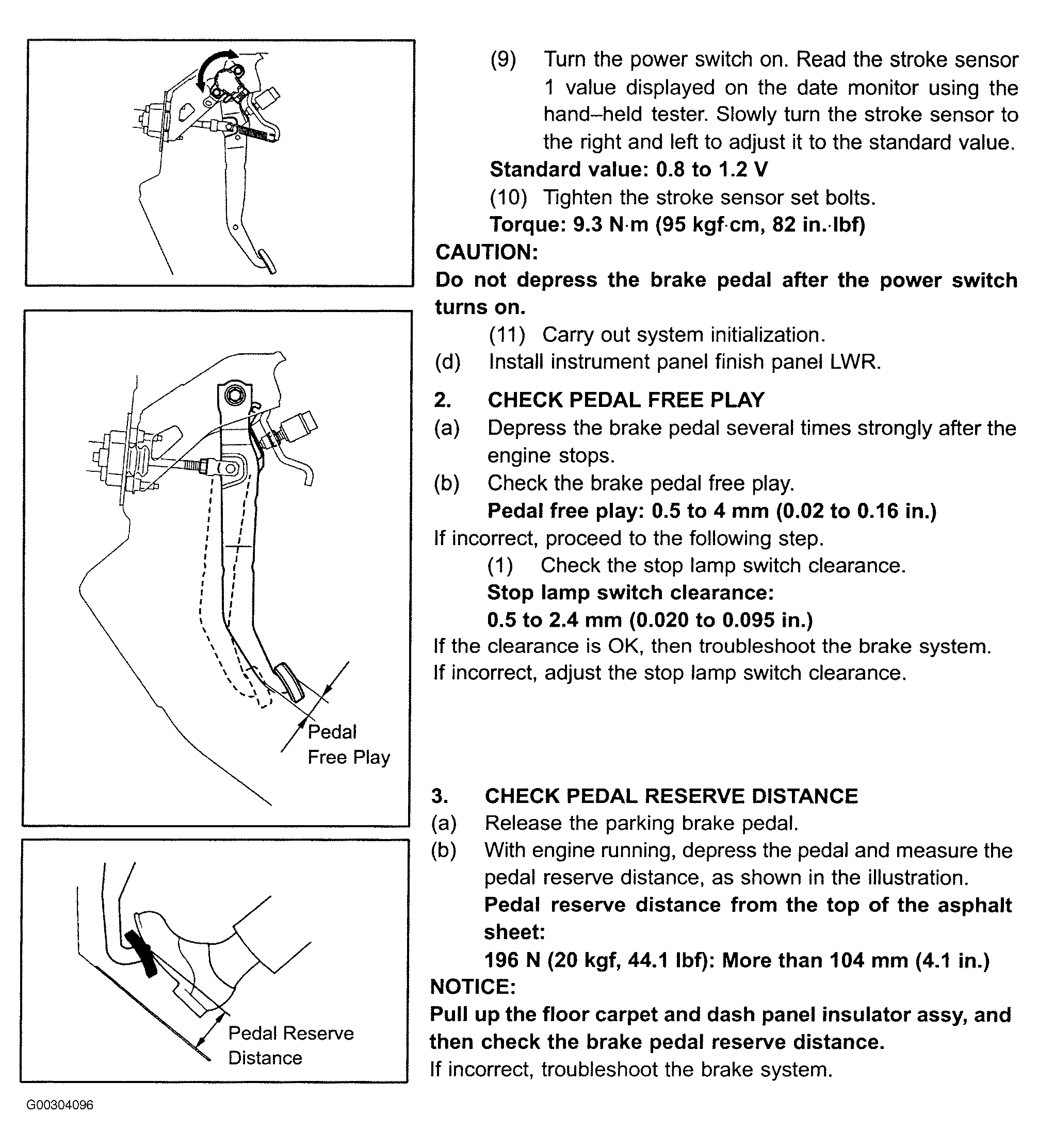

For procedure, see Fig 1 and Fig 2 . For component view, see Fig 3. For calibration and initialization procedure, see ELECTRONICALLY CONTROLLED BRAKE SYSTEM CALIBRATION & INITIALIZATION . For specification, see BRAKE PEDAL HEIGHT SPECIFICATIONS table and see BRAKE PEDAL MINIMUM DEPRESSED HEIGHT table.
BRAKE PEDAL HEIGHT SPECIFICATIONS
| Application | In. (mm) |
|---|---|
| Prius | 5.433-5.827 (138-148) |
BRAKE PEDAL MINIMUM DEPRESSED HEIGHT
| Application | In. (mm) |
|---|---|
| Prius | 3.35 (85.1) |
