Multi-Display (CRT Display): Replacement

HINT:

• COMPONENTS: See COMPONENTS
• Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  REPLACEMENT  )
2. REMOVE INTEGRATION CONTROL & PANEL ASSY
   1. Remove the 6 bolts.
   2. Disconnect the connectors and remove the integration control & panel assy.

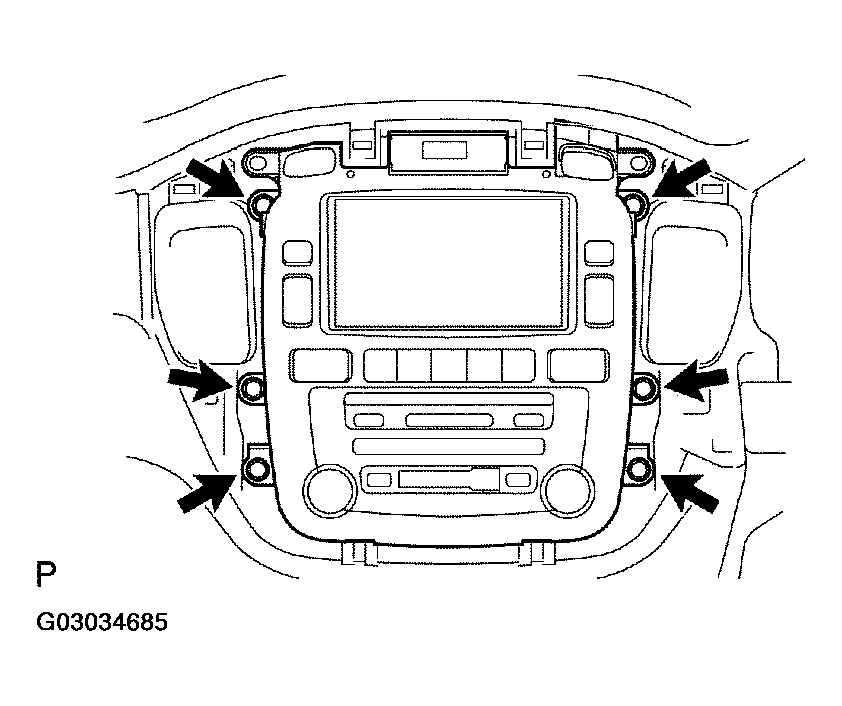

   Fig 1: Locating Integration Control And Panel Assy Removing Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE MULTI-DISPLAY CONTROLLER BRACKET A
   1. Remove the 7 screws and multi-display controller bracket A.
   Fig 2: Locating Multi-Display Controller Bracket A Removing Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE MULTI-DISPLAY CONTROLLER BRACKET B
   1. Remove the 7 screws and multi-display controller bracket B.
   Fig 3: Locating Multi-Display Controller Bracket B Removing Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE MULTI-DISPLAY (CRT DISPLAY) DISPLAY
6. INSTALL MULTI-DISPLAY (CRT DISPLAY) DISPLAY

   HINT:

   Perform the screen noise automatic adjustment when screen noise occurs (see SCREEN NOISE AUTOMATIC ADJUSTMENT ).
