Inspection Procedure
WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to operate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one method to shorten labor time.
It is possible to display the DATA LIST during the ACTIVE TEST.
- Warm up the engine.
- Turn the ignition switch off.
- Connect the hand-held tester together with the CAN VIM (controller area network vehicle interface module) to the DLC3.
- Turn the ignition switch to the ON position.
- Turn on the tester.
- Select the item "DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST'.

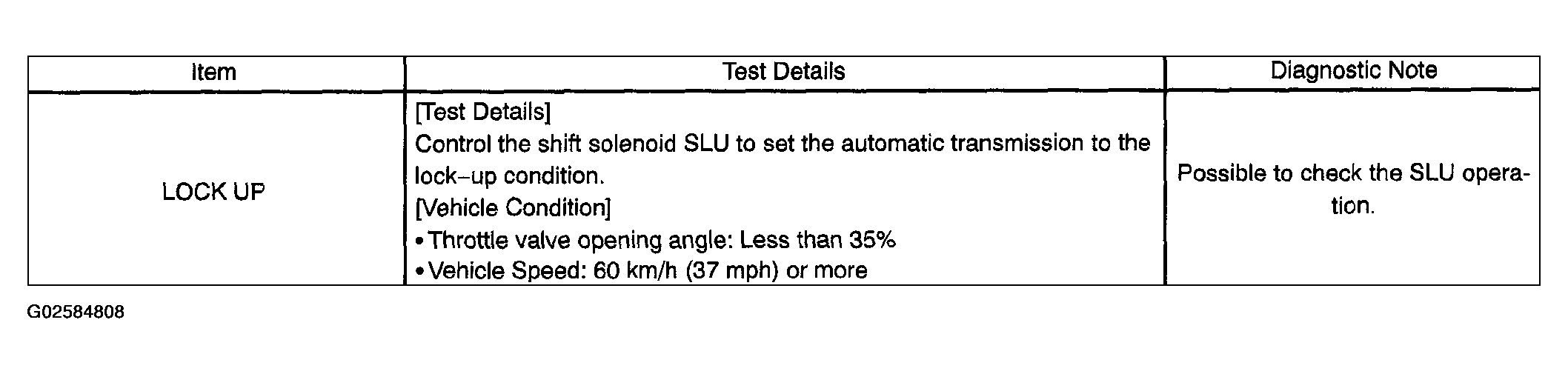

- According to the display on tester, perform the "ACTIVE TEST".
HINT:
- This test can be conducted when the vehicle speed is 60 km/h (37 mph) or more.
- This test can be conducted in the 5th gear.
- Lightly depress the accelerator pedal and check that the engine speed does not change abruptly.
HINT:
- When changing the accelerator pedal opening angle while driving, if the engine speed does not change, lock-up is on.
- Slowly release, but not fully, the accelerator pedal in order to decelerate. (Fully releasing the pedal will close the throttle valve and lock-up may be turned off automatically.)
- CHECK OTHER DTCS OUTPUT(IN ADDITION TO DTC P2757)
- Connect the OBD II scan tool or the hand-held tester to the DLC3.
- Turn the ignition switch to the ON position and push the OBD II scan tool or the hand-held tester main switch ON.
- When you use hand-held tester:
Select the item "DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES".
- Read the DTCs using the OBD II scan tool or the hand-held tester.
Result:
RESULTDisplay (DTC output) Proceed to Only "P2757" is output A "P2757" and other DTCs B HINT:
If any other codes besides "P2757" are output, perform troubleshooting for those DTCs first.
- B: GO TO DIAGNOSTIC TROUBLE CODE CHART
- A: GO TO NEXT STEP
- INSPECT SHIFT SOLENOID VALVE(SLU)
- Remove the shift solenoid valve SLU.
- Measure the resistance according to the value(s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition 20°C (68°F) 1 -2 5.0 to 5.6 Ω - Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
OK:
The solenoid makes an operating sound.
- NG: REPLACE SHIFT SOLENOID VALVE (SLU) (SEE TRANSMISSION VALVE BODY ASSY (A750E/A750F) )
- OK: GO TO NEXT STEP
- INSPECT TRANSMISSION VALVE BODY ASSY (A750E/A750F)
OK:
There are no foreign objects on each valve.
- NG: REPAIR OR REPLACE TRANSMISSION VALVE BODY ASSY
- OK: GO TO NEXT STEP
- INSPECT TORQUE CONVERTER CLUTCH ASSY (SEE TORQUE CONVERTER CLUTCH AND DRIVE PLATE (A750E/A750F)
)
OK:
The torque converter clutch operates normally.
- OK: REPAIR OR REPLACE AUTOMATIC TRANSMISSION ASSY (A750E (1GR-FR)) or COMPONENTS
- NG: GO TO NEXT STEP
REPLACE TORQUE CONVERTER CLUTCH ASSY
