Automatic Transmission ASSY (A750F (1GR-FE)): Components

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

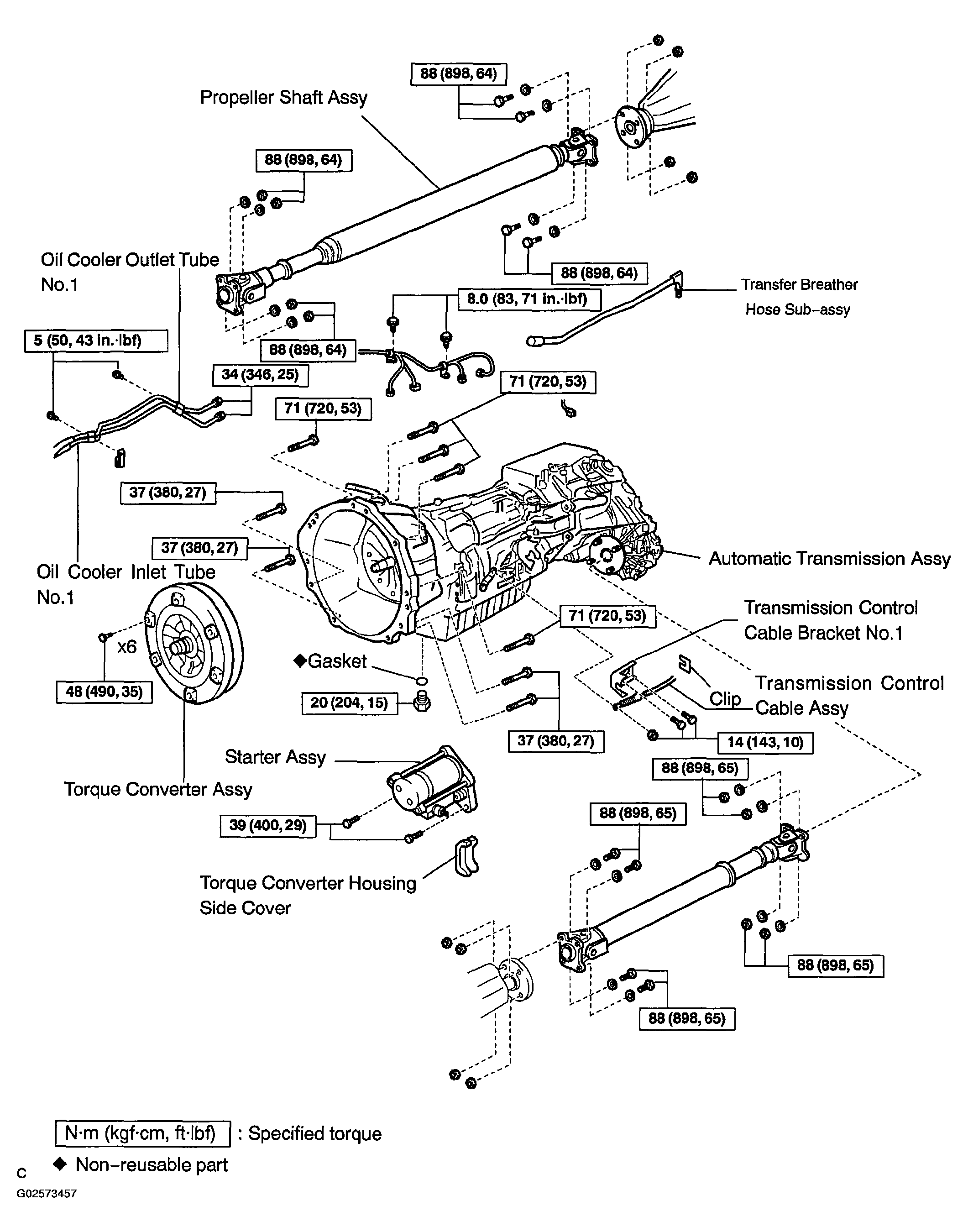

Fig 1: Automatic Transmission Assy A750F (1GR-FE) Replacement Components With Torque Specifications (1 Of 3)
G02573457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Automatic Transmission Assy A750F (1GR-FE) Replacement Components With Torque Specifications (2 Of 3)
G02573458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

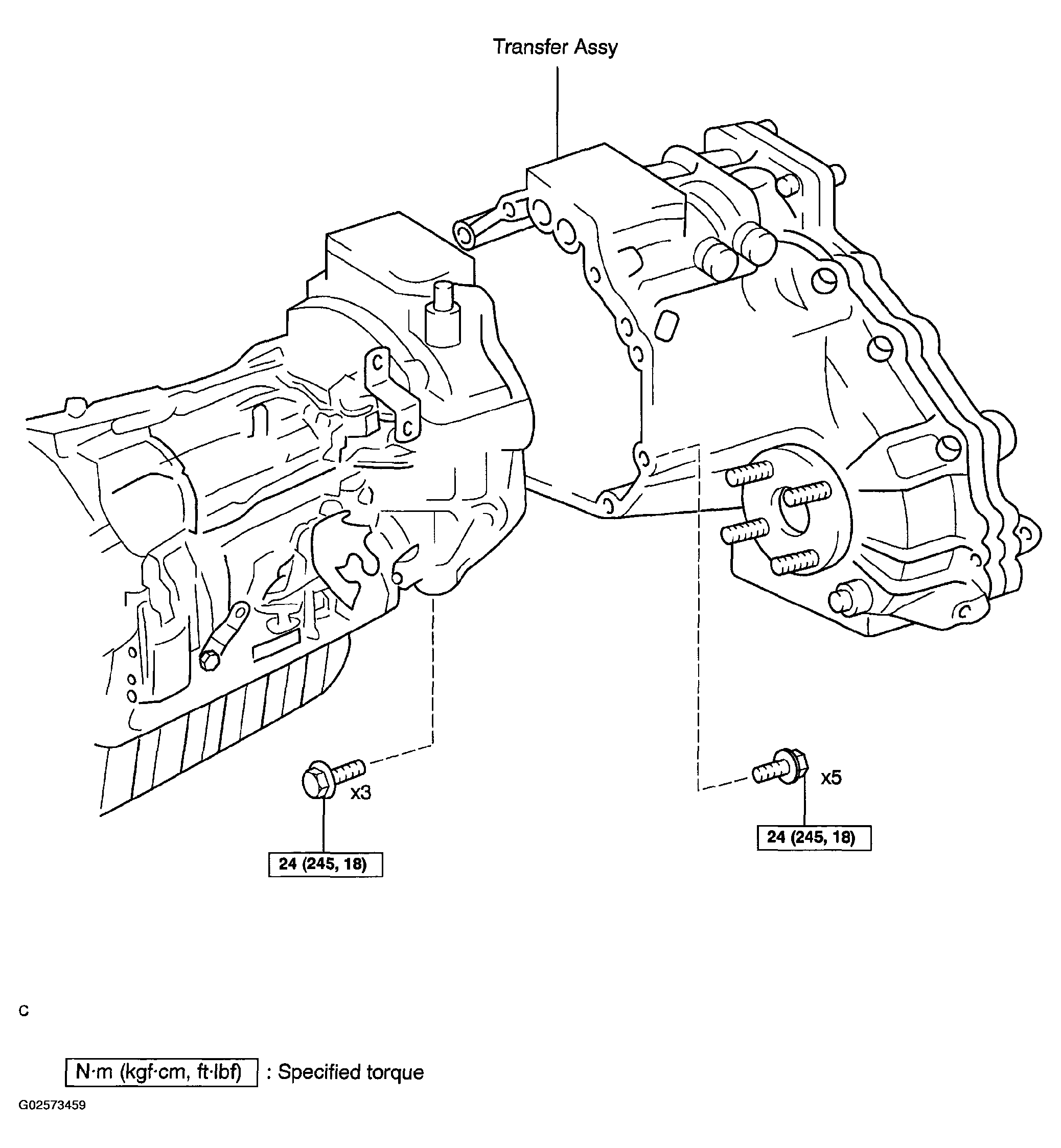

Fig 3: Automatic Transmission Assy A750F (1GR-FE) Replacement Components With Torque Specifications (3 Of 3)
G02573459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
