Brake Pedal Removal

Remove the screws that hold the trim panel to the instrument panel.
Remove the trim panel.
Remove the driver's side knee bolster. Refer to "DRIVER'S SIDE KNEE BOLSTER REMOVAL ".

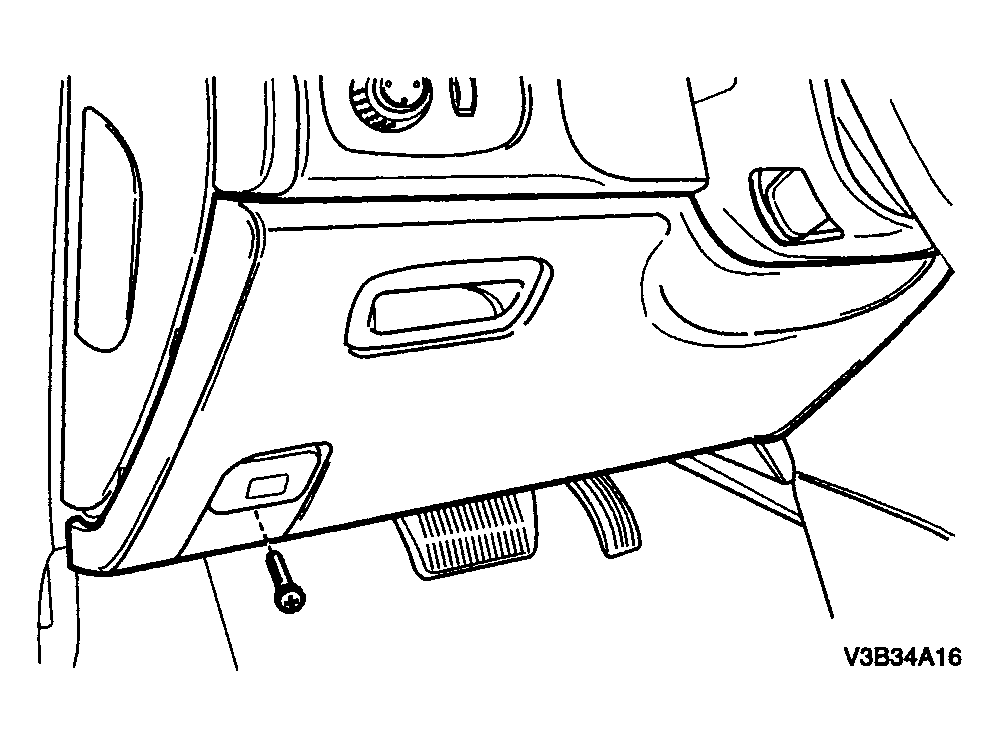

Fig 1: Removing Screws Holding Trim Panel To Instrument Panel
Courtesy of SUZUKI OF AMERICA CORP.
Remove the stoplamp switch. Refer to "STOPLAMP SWITCH REMOVAL ".
Disconnect the spring retaining clip and the bolt from the pushrod clevis.

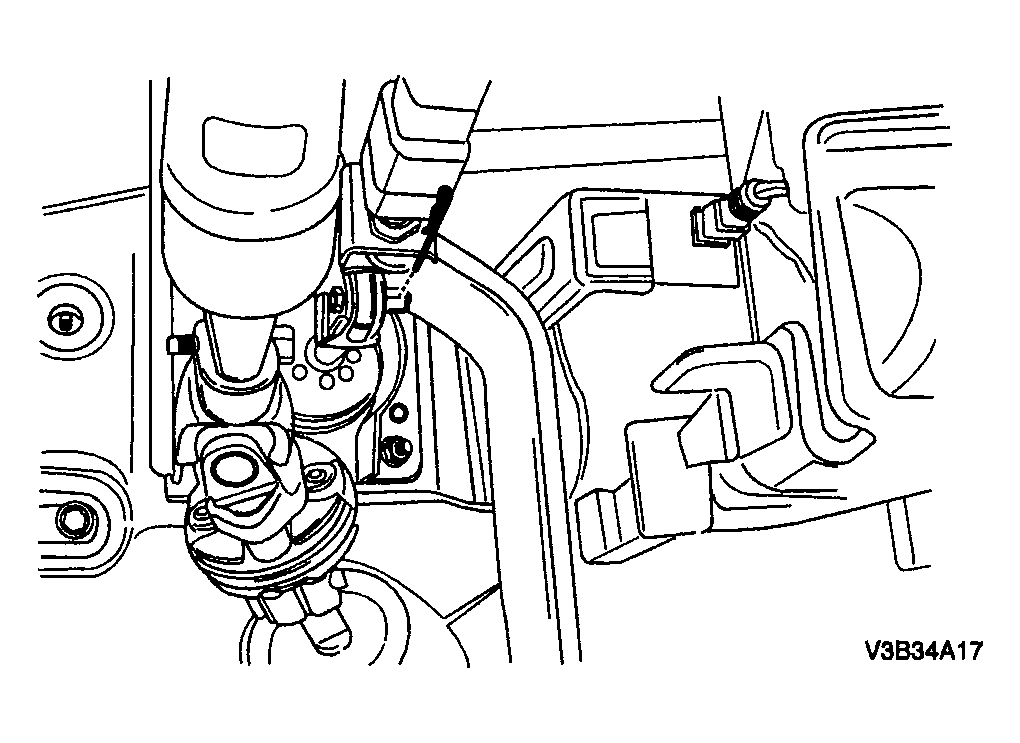

Fig 2: Disconnecting Spring Retaining Clip And Bolt From Pushrod Clevis
Courtesy of SUZUKI OF AMERICA CORP.
Remove the hex nut and the spring.
Remove the brake pedal and the bolt.

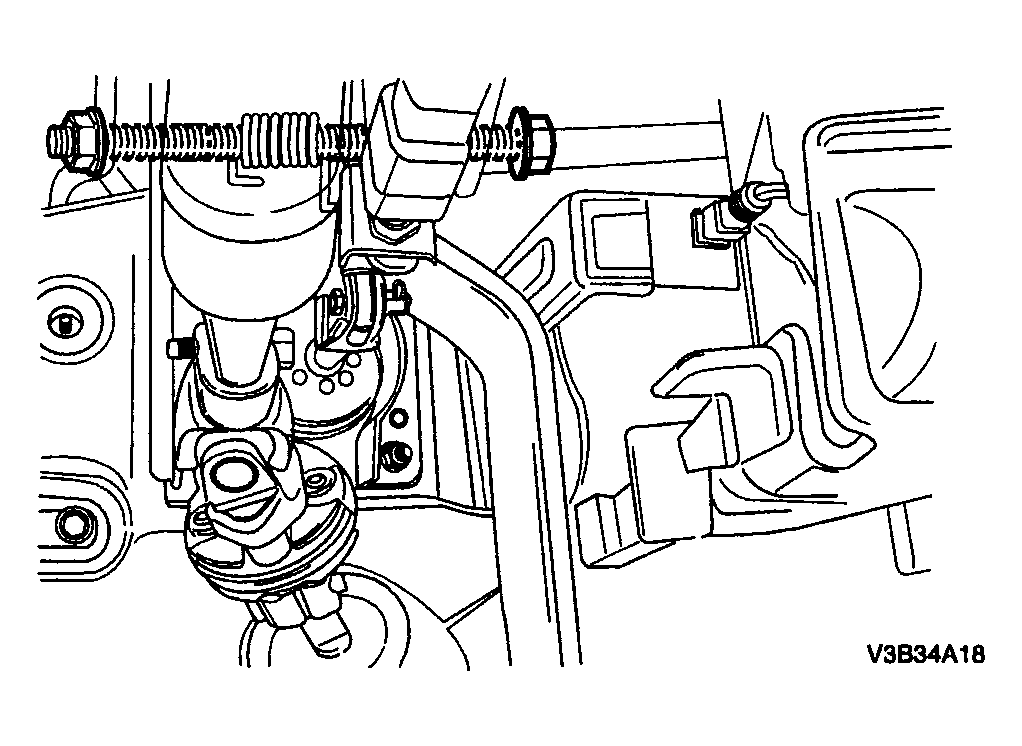

Fig 3: Removing Brake Pedal Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove the brake pedal cover (manual transaxle pedal shown).

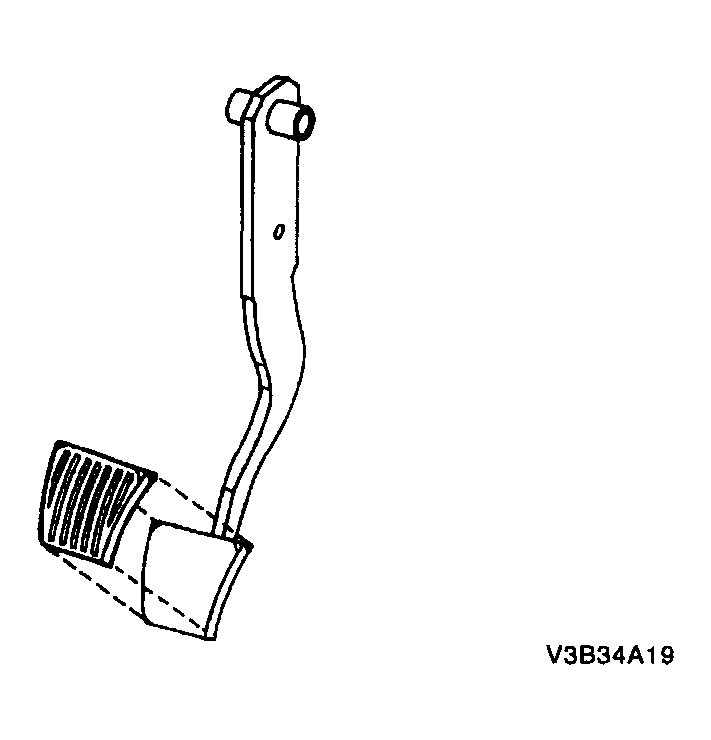

Fig 4: Removing Brake Pedal Cover
Courtesy of SUZUKI OF AMERICA CORP.
