Stoplamp Switch Removal

  1. Turn the stoplamp switch connector assembly clockwise and remove it from the brake pedal bracket.
  2. Separate the stoplamp switch from the connector.

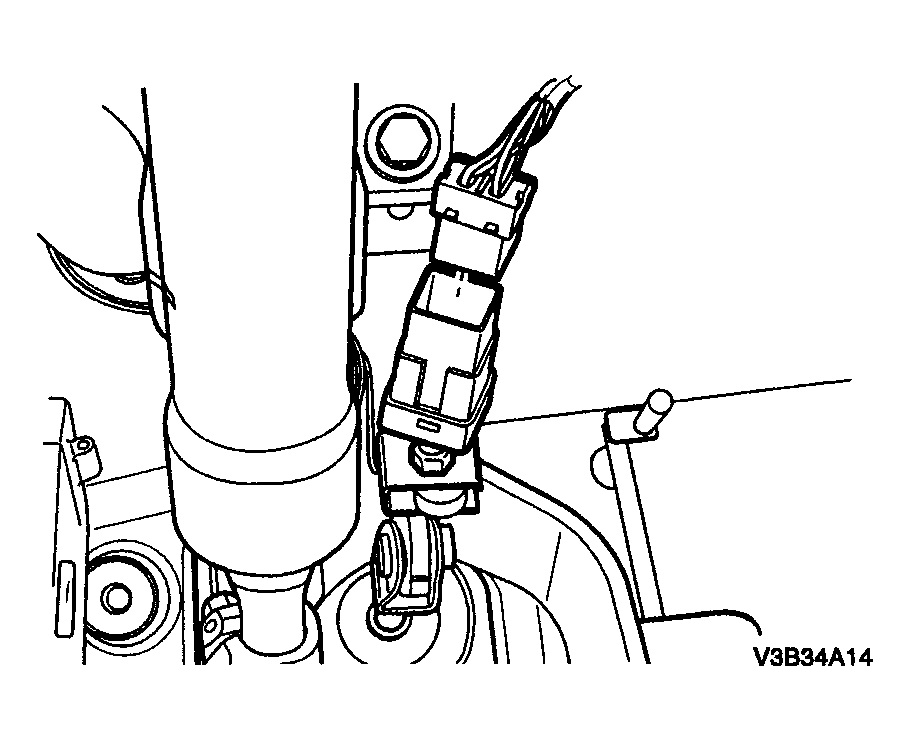

    Fig 1: Separating Stoplamp Switch From Connector
    G04095135Courtesy of SUZUKI OF AMERICA CORP.
