Driver's Side Knee Bolster Removal

  1. Remove the coin storage and the screws.
  2. Separate the hood release cable from the hood latch release handle.
  3. Carefully pull the instrument panel under cover until the mounting clips are released and the instrument panel under cover.
    Fig 1: Removing Coin Storage And Screws
    G04096370Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the bolts from the driver's side knee bolster.
  5. Remove the knee bolster.

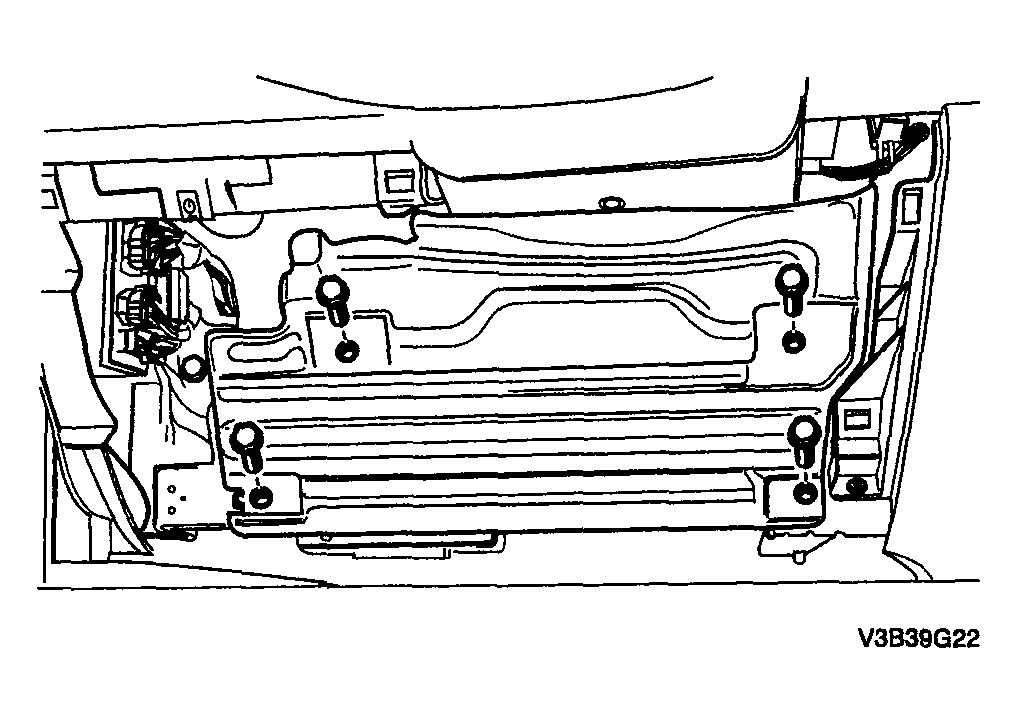

    Fig 2: Removing Bolts From Driver's Side Knee Bolster
    G04096371Courtesy of SUZUKI OF AMERICA CORP.
