Thermometer at Center Duct

WARNING: This page is about a different car, the 2003 Suzuki Vitara, 2003 Suzuki Grand Vitara, 2002 Suzuki Vitara, and 2002 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

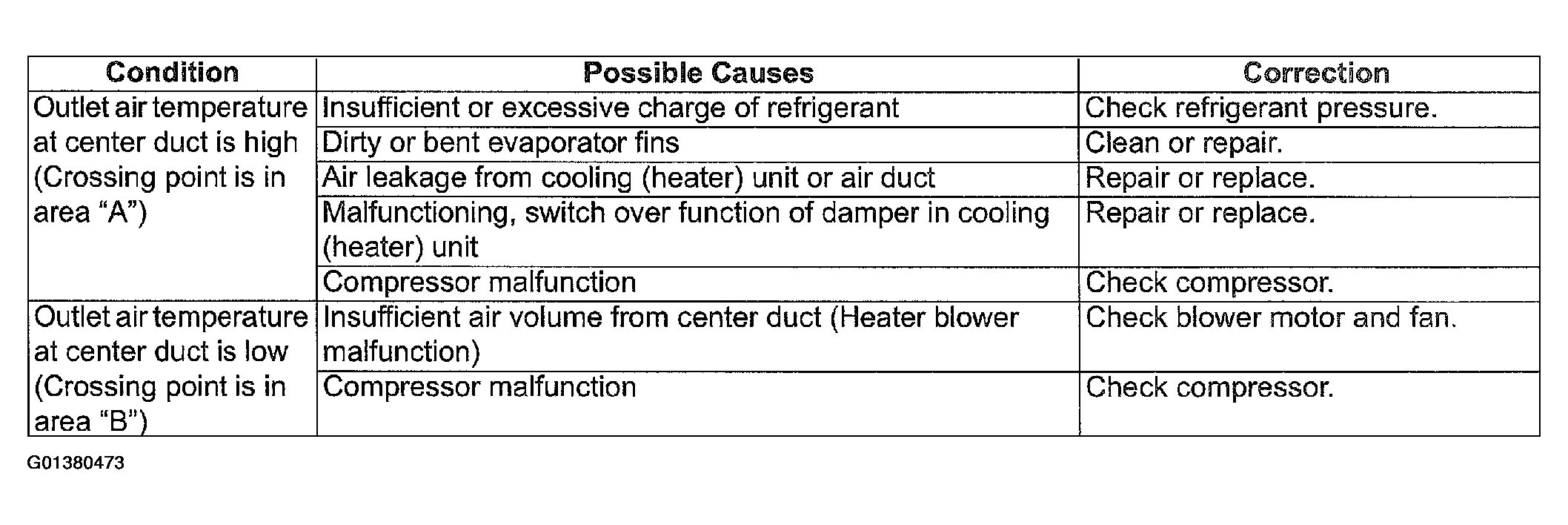

Fig 1: Center Duct Temperature Diagnostic Chart
G01380473Courtesy of SUZUKI OF AMERICA CORP.
NOTE: If ambient temperature is within 30 - 35°C (85 - 95°F), see DETAIL DIAGNOSIS TABLE (AT AMBIENT TEMPERATURE WITHIN 30 -35°C (85 - 95°F)) .
