Detail Diagnosis Table (at Ambient Temperature within 30 -35°C (85 - 95°F))

Gauge readings, conditions, causes, and measures (classified according to malfunction symptoms) will be discussed.

Lo gauge:  0.23 - 0.35 MPa (2.3 - 3.5 kg/cm² ) [33 - 50 psi]

Hi gauge:  1.4- 1.75 MPa (14- 17.5 kg/cm² )[200-249 psi]

Condition: Normal Condition

Lo gauge:  Negative pressure

Hi gauge:  0.5-0.6 MPa (5-6 kg/cm² ) [71.2-85.3 psi]

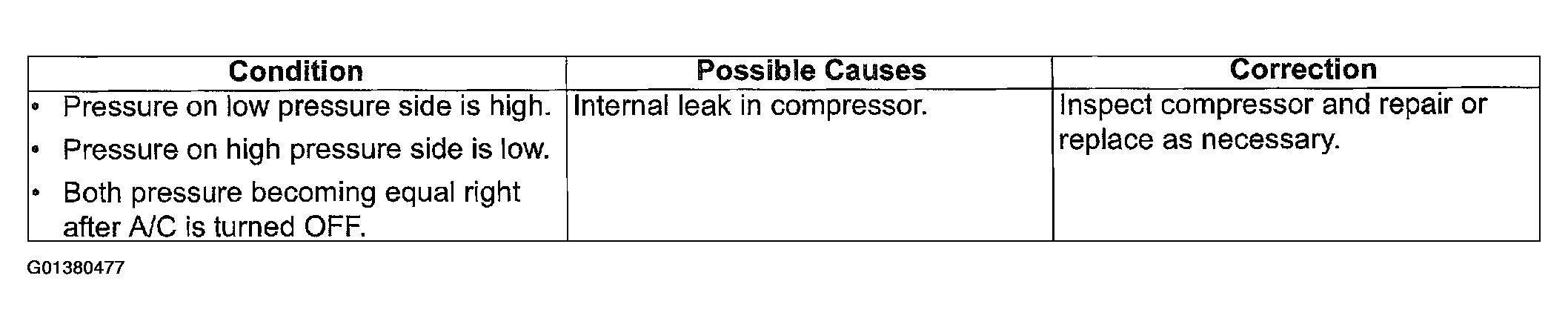

Fig 1: Gauge Readings, Malfunction Symptoms - Detailed Diagnostic Chart (1 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

Lo gauge:  0.23 - 0.35 MPa (2.3 - 3.5 kg/cm² ) [33-50 psi] <-> Negative pressure

Hi gauge:  1.4 - 1.75 MPa (14 - 17.5 kg/cm² ) [200 - 249psi] <-> 0.69 - 0.98 MPa (7 - 10 kg/cm² ) [100 - 142 psi]

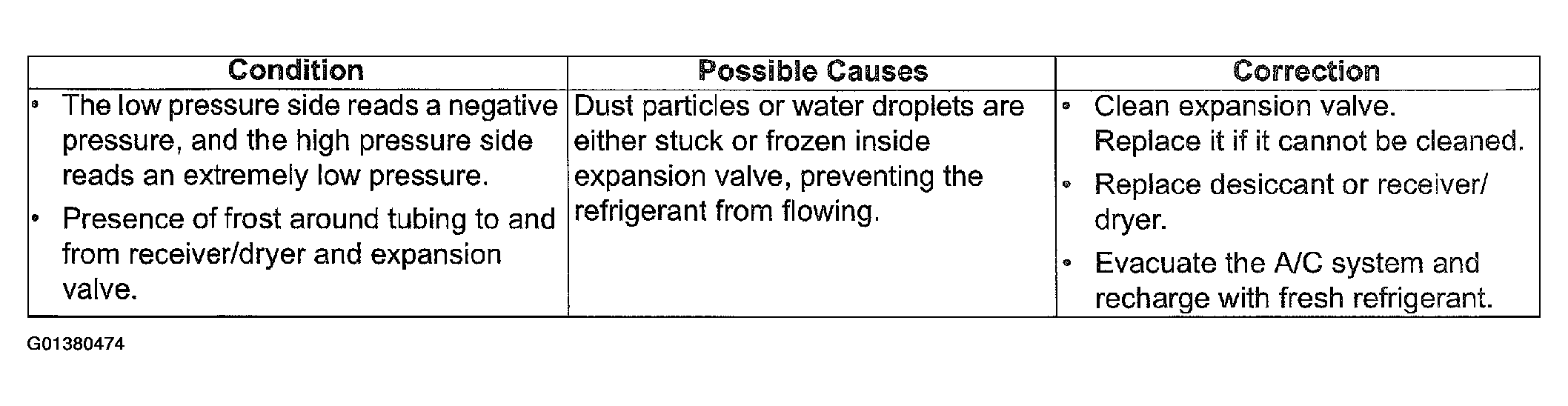

Fig 2: Gauge Readings, Malfunction Symptoms - Detailed Diagnostic Chart (2 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

Lo gauge:  0.05-0.15 MPa (0.5 - 1.5 kg/cm² ) [4.2 - 21.3 psi]

Hi gauge:  0.69 - 0.98 MPa (7-10 kg/cm² ) [100 - 142 psi]

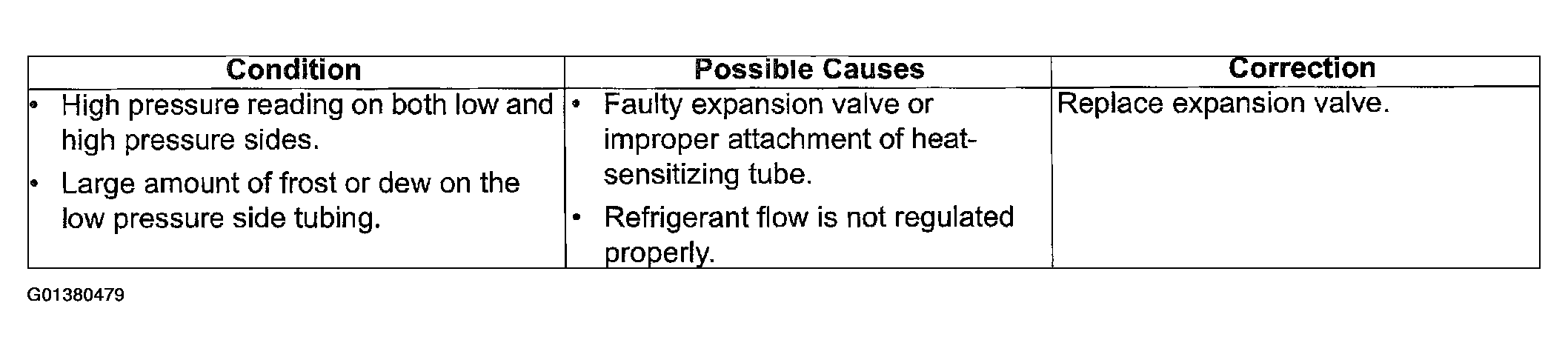

Fig 3: Gauge Readings, Malfunction Symptoms - Detailed Diagnostic Chart (3 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

Lo gauge:  0.4 - 0.6 MPa (4-6 kg/cm² ) [56.9 - 85.3 psi]

Hi gauge:  0.69 - 0.98 MPa (7-10 kg/cm² ) [100-142 psi]

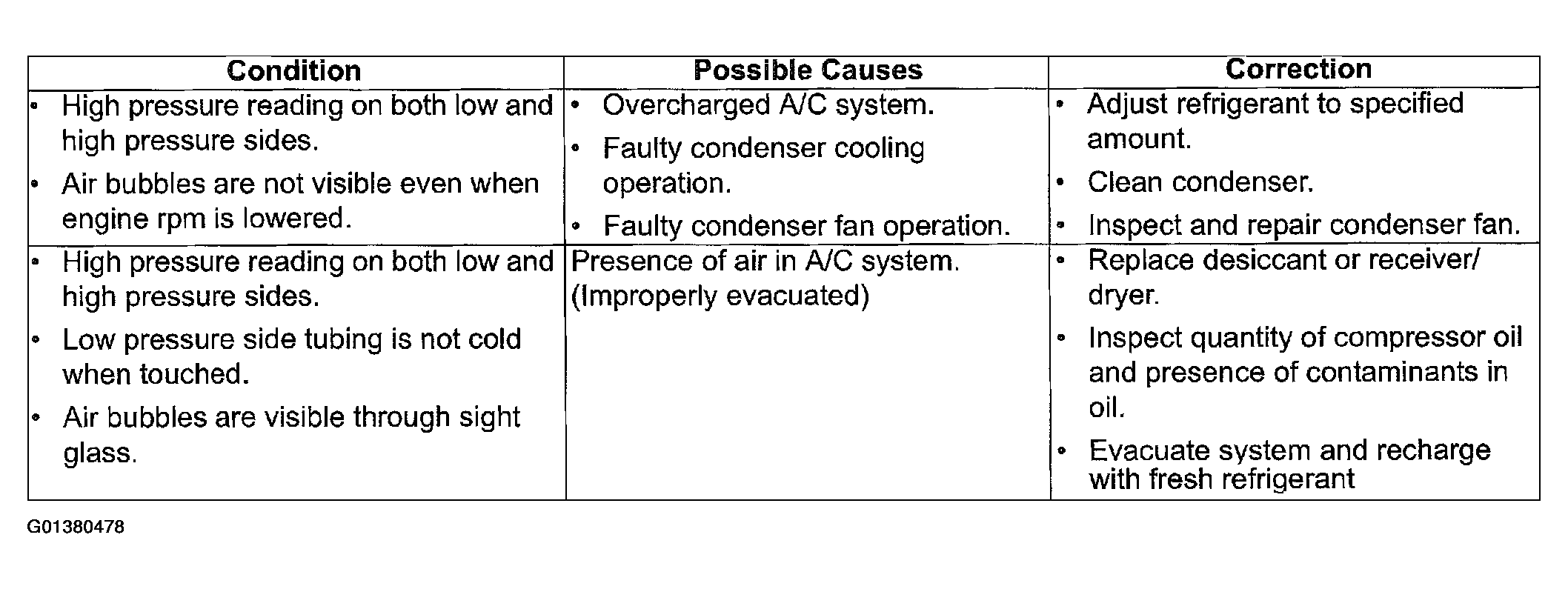

Fig 4: Gauge Readings, Malfunction Symptoms - Detailed Diagnostic Chart (4 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

Lo gauge:  0.35 - 0.45 MPa (3.5 - 4.5 kg/cm² ) [50 - 64 psi]

Hi gauge:  1.96 - 2.45 MPa (20 - 25 kg/cm² ) [285-355 psi]

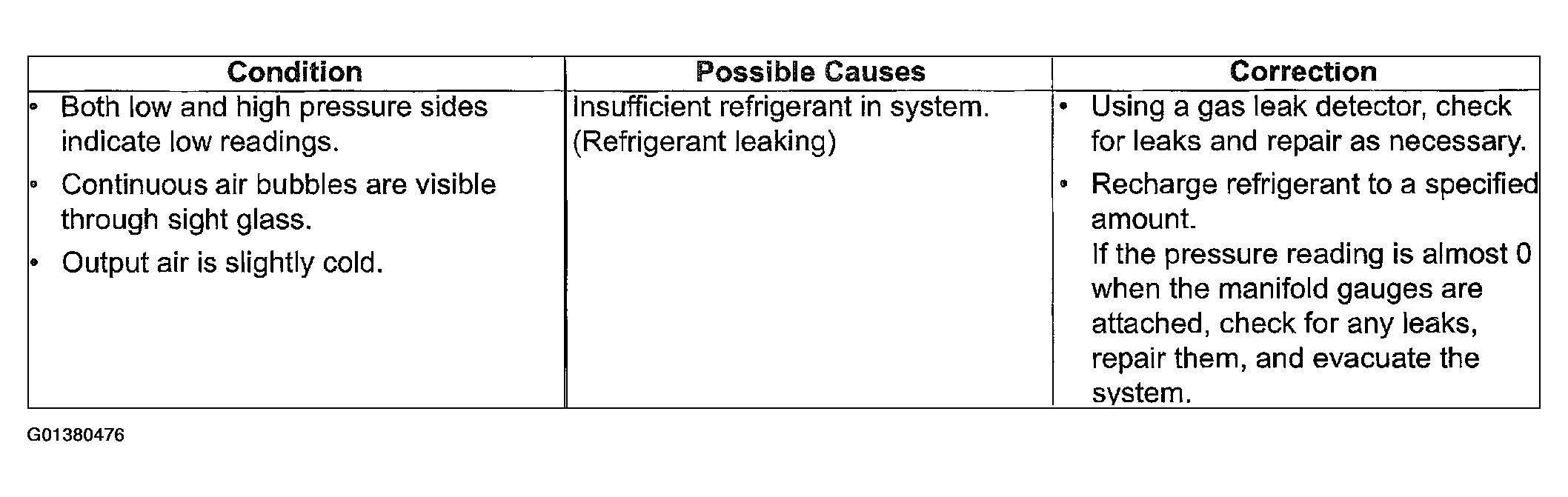

Fig 5: Gauge Readings, Malfunction Symptoms - Detailed Diagnostic Chart (5 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

Lo gauge:  0.45 - 0.55 MPa (4.5 - 5.5 kg/cm² ) [64 - 78 psi]

Hi gauge:  1.96 - 2.45 MPa (20 - 25 kg/cm² ) [285 -355 psi]

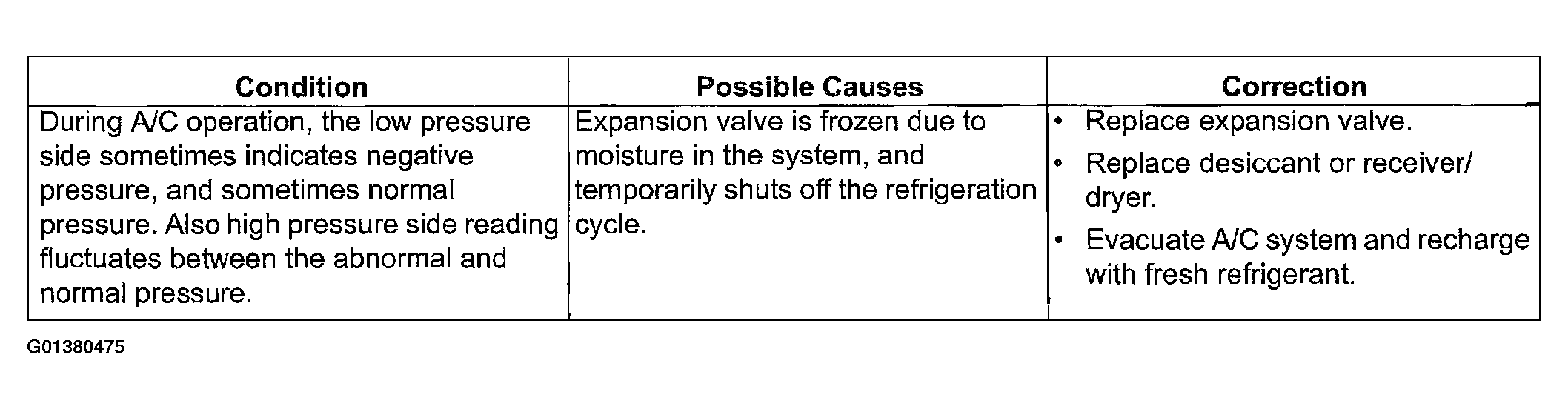

Fig 6: Gauge Readings, Malfunction Symptoms - Detailed Diagnostic Chart (6 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.
