Main Bearings, Crankshaft And Cylinder Block Removal: Removal

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine assembly from vehicle. See ENGINE ASSEMBLY REMOVAL & INSTALLATION .
  2. Remove clutch and flywheel (for M/T vehicle) or drive plate (for A/T vehicle). See REMOVAL .

    Special tool

    1. (A):  09924-17810
    Fig 1: Identifying Flywheel Bolt & Special Tool (A)
    G01351992Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove throttle body with intake manifold and exhaust manifold. See EXHAUST MANIFOLD REMOVAL & INSTALLATION .
  4. Remove oil pan and oil pump strainer. See OIL PAN, OIL PUMP STRAINER REMOVAL & INSTALLATION .
  5. Remove oil pump. See OIL PUMP REMOVAL AND INSTALLATION .
  6. Remove cylinder head cover. See CYLINDER HEAD COVER REMOVAL & INSTALLATION .
  7. Remove timing chain cover. See TIMING CHAIN COVER REMOVAL & INSTALLATION .
  8. Remove timing chain guide, chain tensioner, tensioner adjusters, 2nd timing chain and 1st timing chain. See 2ND TIMING CHAIN & CHAIN TENSIONER REMOVAL  and 1ST TIMING CHAIN & CHAIN TENSIONER REMOVAL .
  9. Remove cylinder head assembly. See VALVES & CYLINDER HEAD REMOVAL .
  10. Remove pistons and connecting rods. See PISTONS, PISTON RINGS, CONNECTING RODS & CYLINDERS REMOVAL AND INSTALLATION .

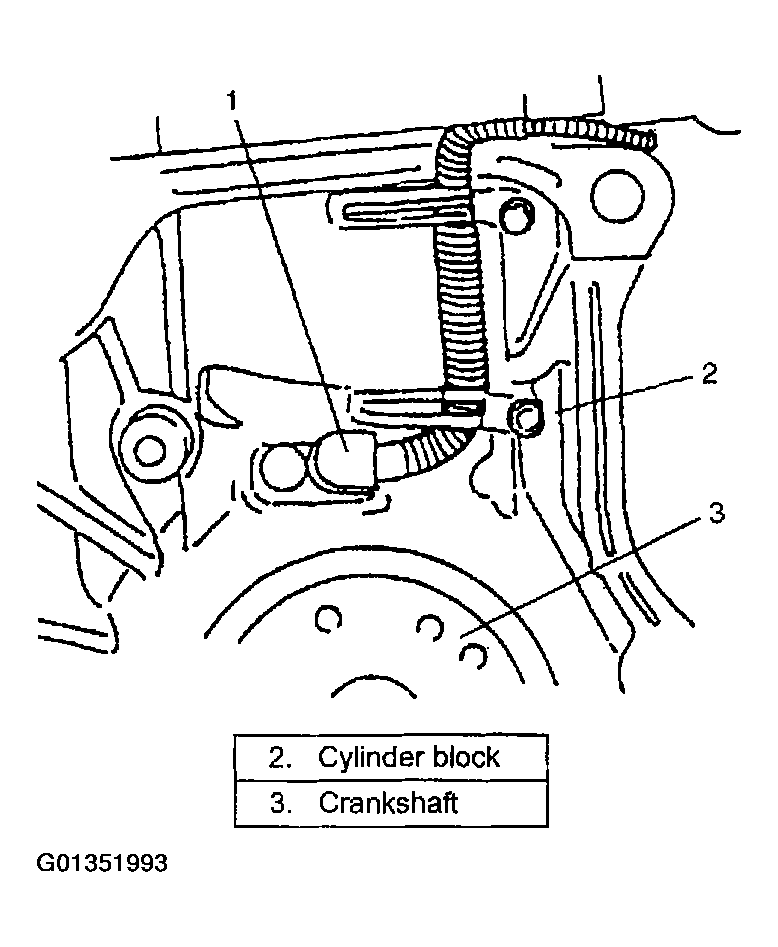

  11. Remove CKP sensor (1).
    Fig 2: Identifying CKP Sensor
    G01351993Courtesy of SUZUKI OF AMERICA CORP.
  12. Remove water pump (1) and heater outlet pipe.
  13. Remove engine side mounting brackets (right and left (2)).
    Fig 3: Identifying Water Pump & Left Engine Side Mounting Bracket
    G01351994Courtesy of SUZUKI OF AMERICA CORP.

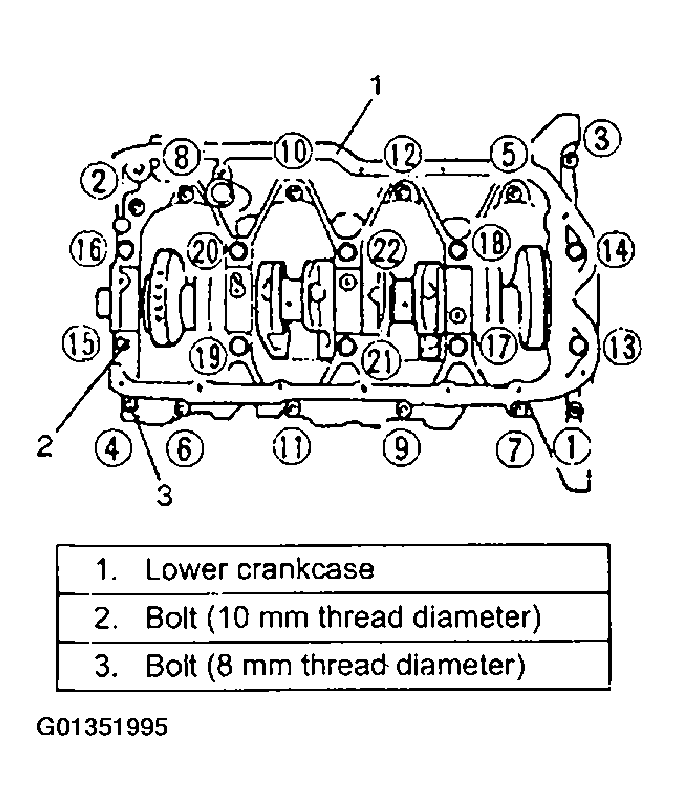

  14. Loosen crankcase bolts, the following sequence (1-22) in the figure and remove them.
    Fig 4: Identifying Crankcase Bolts Loosening Sequence
    G01351995Courtesy of SUZUKI OF AMERICA CORP.
  15. Remove crankshaft from cylinder block.
