Clutch Cover, Clutch Disc, Flywheel Removal & Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Hold flywheel stationary with special tool (A) and remove clutch cover bolts (1), clutch cover (2) and clutch disc.
Special tool

(A): 09924-17810

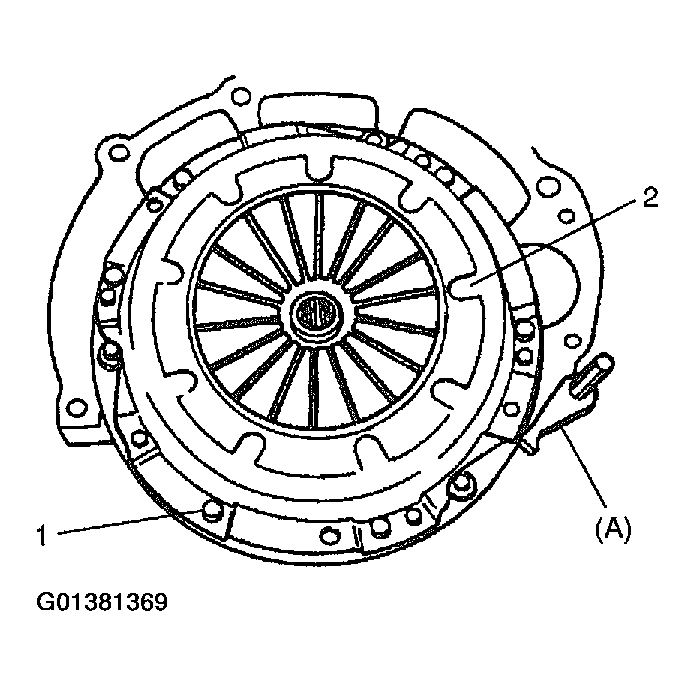

Fig 1: Identifying Special Tool, Clutch Cover Bolts & Clutch Cover
Courtesy of SUZUKI OF AMERICA CORP.
Pull out input shaft bearing (1) by using special tool and wrench.
Special tool

(B): 09923-73210

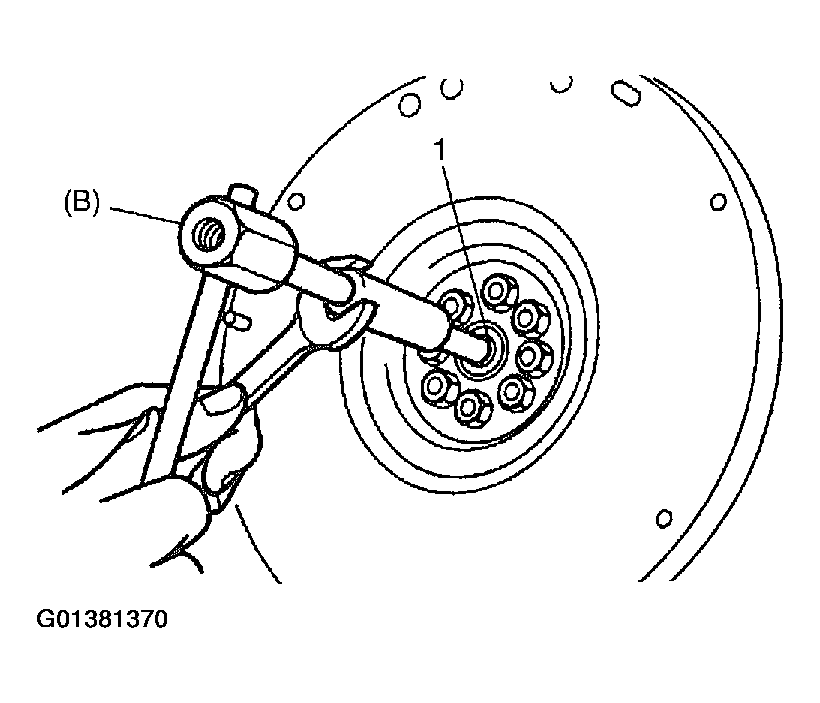

Fig 2: Pulling Out Input Shaft Bearing
Courtesy of SUZUKI OF AMERICA CORP.
Remove release bearing and release fork.
