RH (No. 2) Bank 2nd Timing Chain & Chain Tensioner Removal

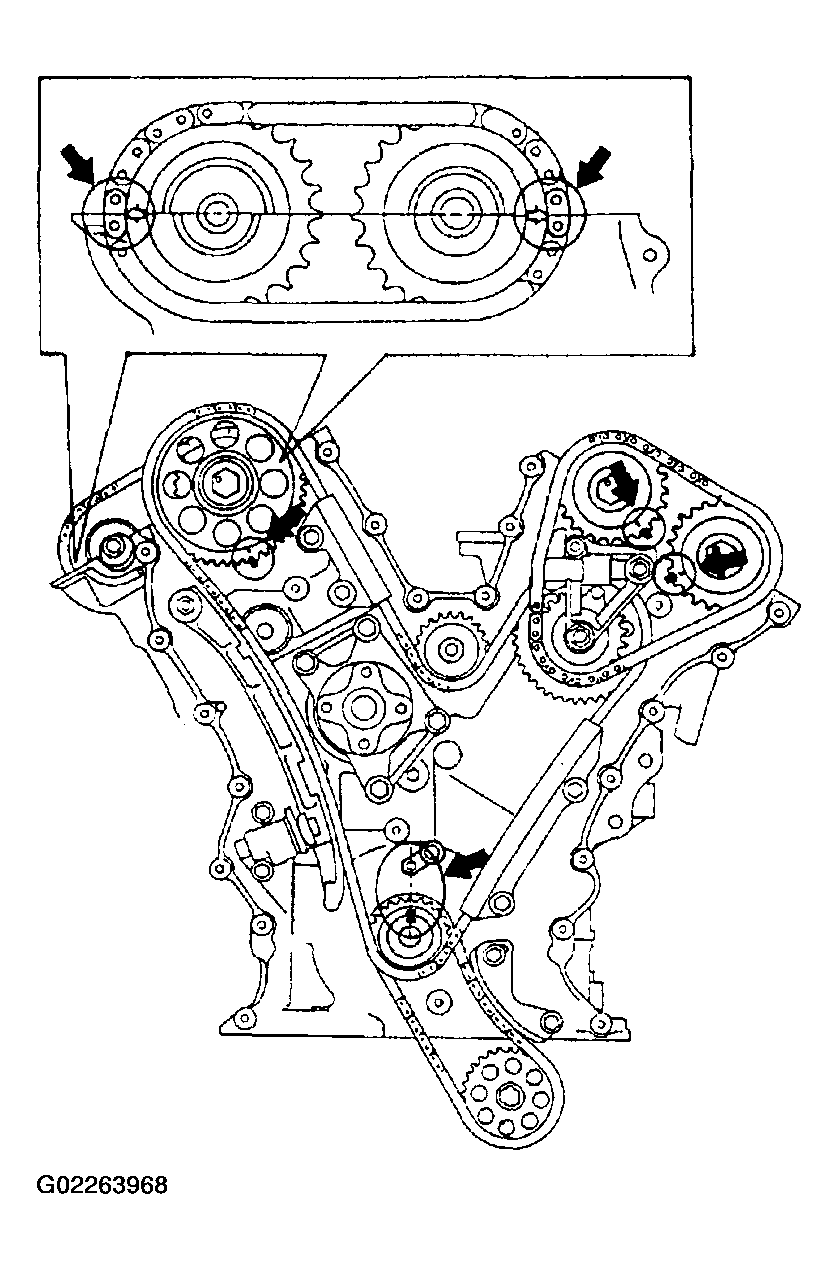

For reinstallation of timing chain, align 12 timing marks as shown in the figure by turning crankshaft.

Fig 1: Aligning Timing Marks
Courtesy of SUZUKI OF AMERICA CORP.
Remove LH bank 2nd timing chain. Refer to LH (NO. 1) BANK 2ND TIMING CHAIN & CHAIN TENSIONER COMPONENTS .
Remove 1st timing chain. Refer to 1ST TIMING CHAIN & CHAIN TENSIONER REMOVAL .
Remove timing chain guide No. 3 referring to RH (NO. 2) BANK 2ND TIMING CHAIN & CHAIN TENSIONER COMPONENTS :

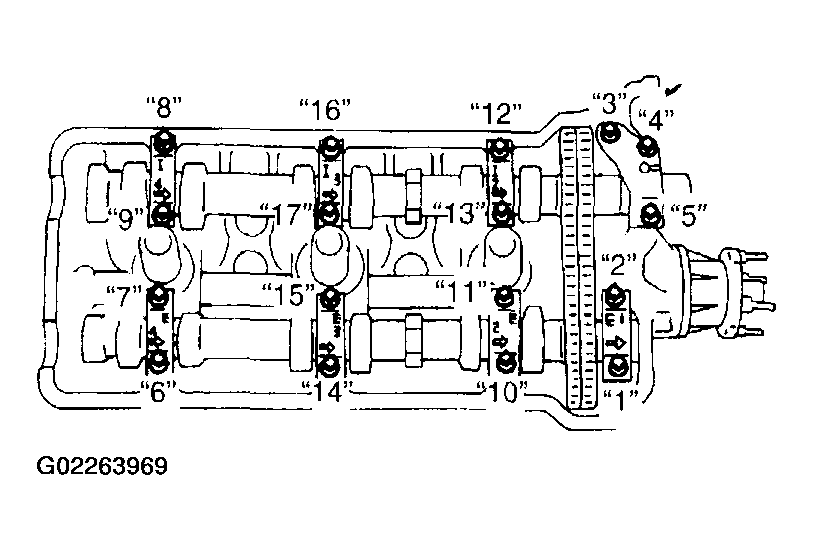

Loosen camshaft housing bolts in such order ("1" - "17") as indicated in the figure and remove them.
Remove camshaft housings.

Fig 2: Loosening Camshaft Housing Bolts In Order
Courtesy of SUZUKI OF AMERICA CORP.
Remove RH bank intake camshaft, RH bank exhaust camshaft, and RH bank 2nd timing chain as a set referring to RH (NO. 2) BANK 2ND TIMING CHAIN & CHAIN TENSIONER COMPONENTS .
Remove timing chain tensioner adjuster No. 2, referring to RH (NO. 2) BANK 2ND TIMING CHAIN & CHAIN TENSIONER COMPONENTS .
