RH (No. 2) Bank 2nd Timing Chain & Chain Tensioner Components

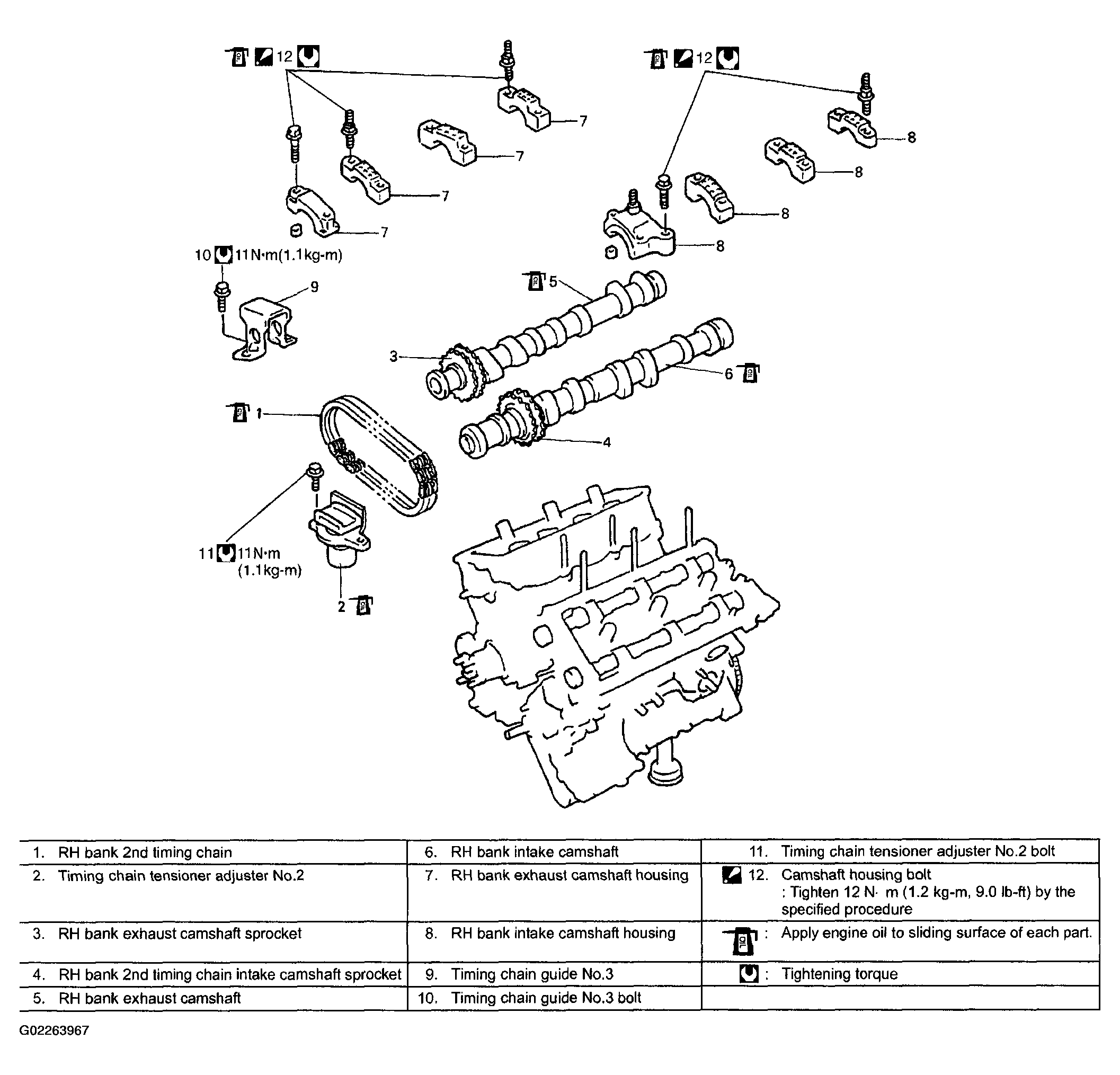

Fig 1: Exploded View Of RH (No. 2) Bank 2nd Timing Chain & Chain Tensioner Components

G02263967

Courtesy of SUZUKI OF AMERICA CORP.
