LH (No. 1) Bank 2nd Timing Chain & Chain Tensioner Components

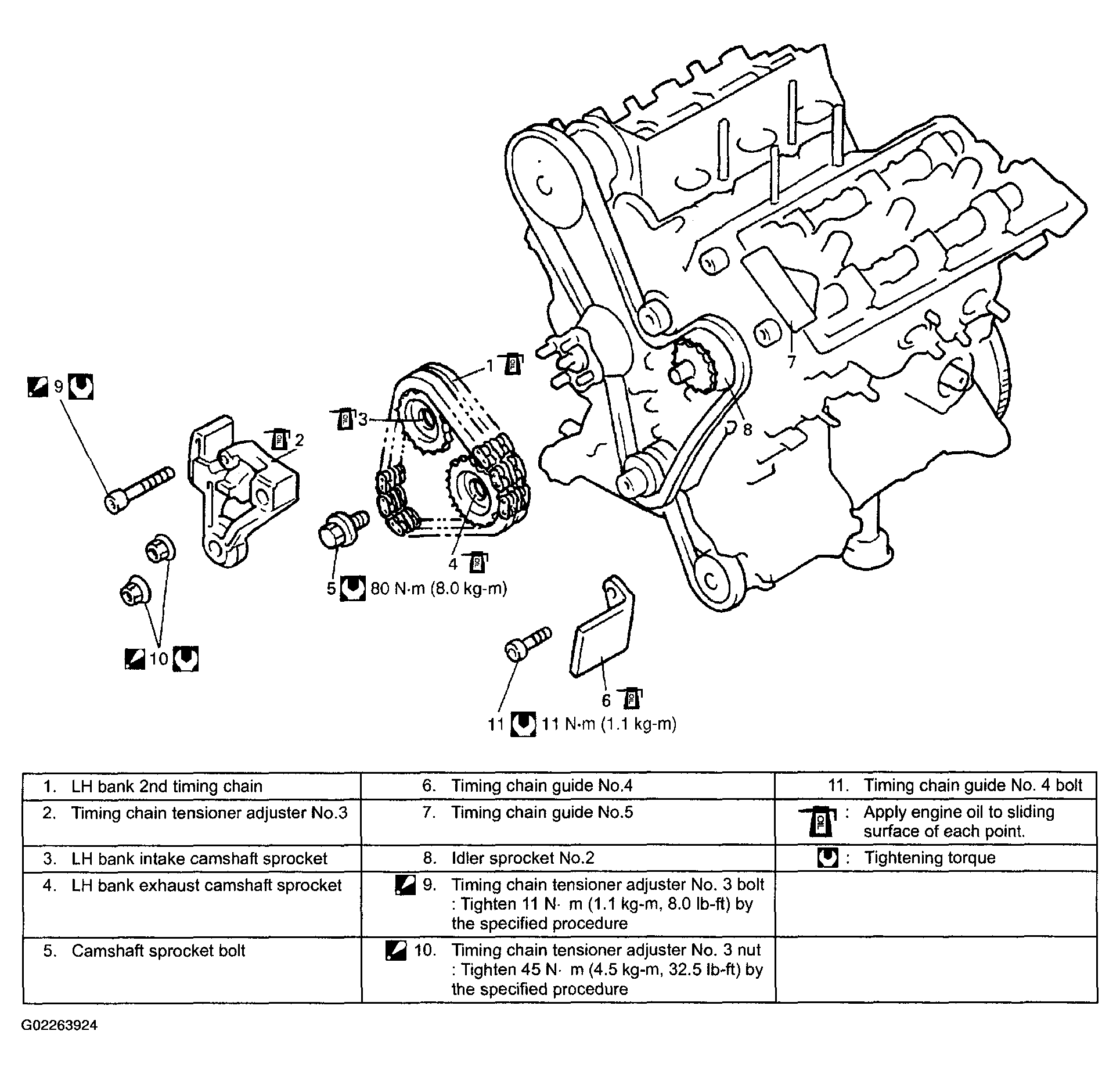

Fig 1: Exploded View Of LH (No. 1) Bank 2nd Timing Chain & Chain Tensioner Components

G02263924

Courtesy of SUZUKI OF AMERICA CORP.
