DTC B1612: Front Sub Sensor RH Lost Communication

Diagnosis start condition:

When the ignition voltage is 10 - 16 V.

DTC detecting condition:

Failure detection pattern:

Warning light/indicator light:

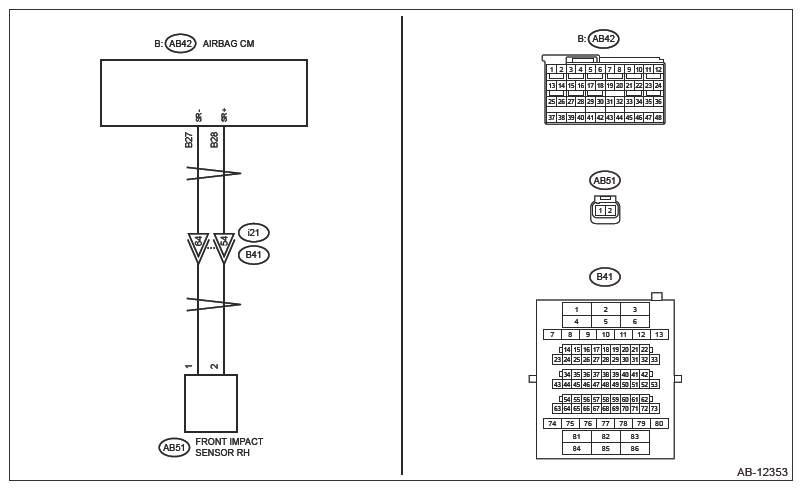

Wiring diagram:

Airbag system Ref. to WIRING SYSTEM>AIRBAG SYSTEM>WIRING DIAGRAM .

G16768184Courtesy of SUBARU OF AMERICA, INC.
CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to AIRBAG (DIAGNOSTICS)>GENERAL DESCRIPTION>CAUTION .
  1. CHECK POOR CONTACT OF CONNECTORS  .

    Check for poor contact of the connectors (AB42, B41, AB51) between the airbag control module and Front impact sensor RH.

    Is there poor contact?

    Yes:  Replace the bulkhead harness or airbag main harness.

    No:  GO TO  2.

  2. CHECK Front impact sensor RH  .
    1. Turn the ignition switch to OFF, and wait for 60 seconds or more after disconnecting the ground terminal from the battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
    2. Replace Front impact sensor RH with Front impact sensor LH. Ref. to AIRBAG SYSTEM>IMPACT SENSOR>REMOVAL>FRONT IMPACT SENSOR .
    3. Install the ground terminal to the battery sensor and turn the ignition switch to ON. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
    4. Using the Subaru Select Monitor, perform the clear memory of [Airbag]. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY .
    5. Execute the inspection mode. Ref. to AIRBAG (DIAGNOSTICS)>INSPECTION MODE .
    6. Read the DTC of [Airbag] using the Subaru Select Monitor. Ref. to AIRBAG (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

    Is DTC B1612 or B1613 displayed? (Current code)

    Yes:  GO TO  3.

    No:  Replace Front impact sensor RH that was attached on the right side at first. Ref. to AIRBAG SYSTEM>IMPACT SENSOR>REMOVAL>FRONT IMPACT SENSOR .

  3. CHECK AIRBAG MAIN HARNESS (Front impact sensor BUS RH) (OPEN CIRCUIT)  .
    1. Turn the ignition switch to OFF, and wait for 60 seconds or more after disconnecting the ground terminal from the battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
    2. Disconnect the connector (AB46) from the roll connector.
    3. Disconnect the connector (AB83) from the passenger's airbag module.
    4. Disconnect the connector (AB86) from the driver's knee airbag module.
    5. Disconnect the connectors (AB41, AB42, AB43) from airbag control module.
    6. Connect the connector (1BF) in the test harness BF to the connectors (AB41, AB42, AB43).
    7. Disconnect the connector (AB51) from Front impact sensor RH.
    8. Connect the connector (1BI) in the test harness BI to the connector (AB51).
    9. Measure the resistance between the connectors (2BF, 8BF) in the test harness BF and the connector (2BI) in the test harness BI.

      Connector & terminal

      (8BF) No. 6 - (2BI) No. 1:

      (2BF) No. 11 - (2BI) No. 2:

    Is the resistance less than 10 Ω?

    Yes:  GO TO  4.

    No:  Check the bulkhead harness or airbag main harness, and replace the faulty harness.

  4. CHECK AIRBAG MAIN HARNESS (Front impact sensor BUS RH) (SHORTED TO GROUND AND SHORTED BETWEEN LINES)  .

    Measure the resistance between connectors (2BF), (8BF) in the test harness BF and chassis ground, and the resistance between the connectors (2BF) and (8BF) in the test harness BF.

    Connector & terminal

    (8BF) No. 6 - Chassis ground:

    (2BF) No. 11 - Chassis ground:

    (8BF) No. 6 - (2BF) No. 11:

    Is the resistance 1 MΩ or more?

    Yes:  Replace the airbag control module. Ref. to AIRBAG SYSTEM>AIRBAG CONTROL MODULE>REMOVAL .

    No:  Check the bulkhead harness or airbag main harness, and replace the faulty harness.
