Front impact sensor
CAUTION:
Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
NOTE:
Components: Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>COMPONENT>FRONT IMPACT SENSOR .
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the air intake duct. (When removing the sensor RH) Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>REMOVAL .

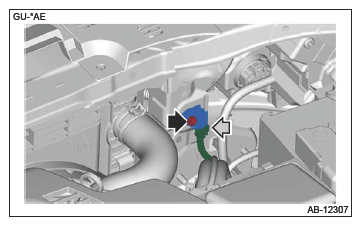

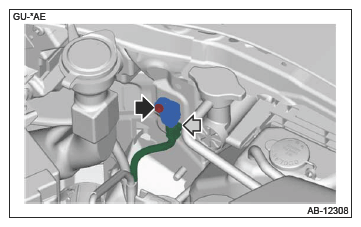

- Remove the Front impact sensor.
- Disconnect the airbag connector. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>EACH IMPACT SENSOR .
- Remove the flange bolt.
- Remove the Front impact sensor.
