Airbag System: Wiring Diagram

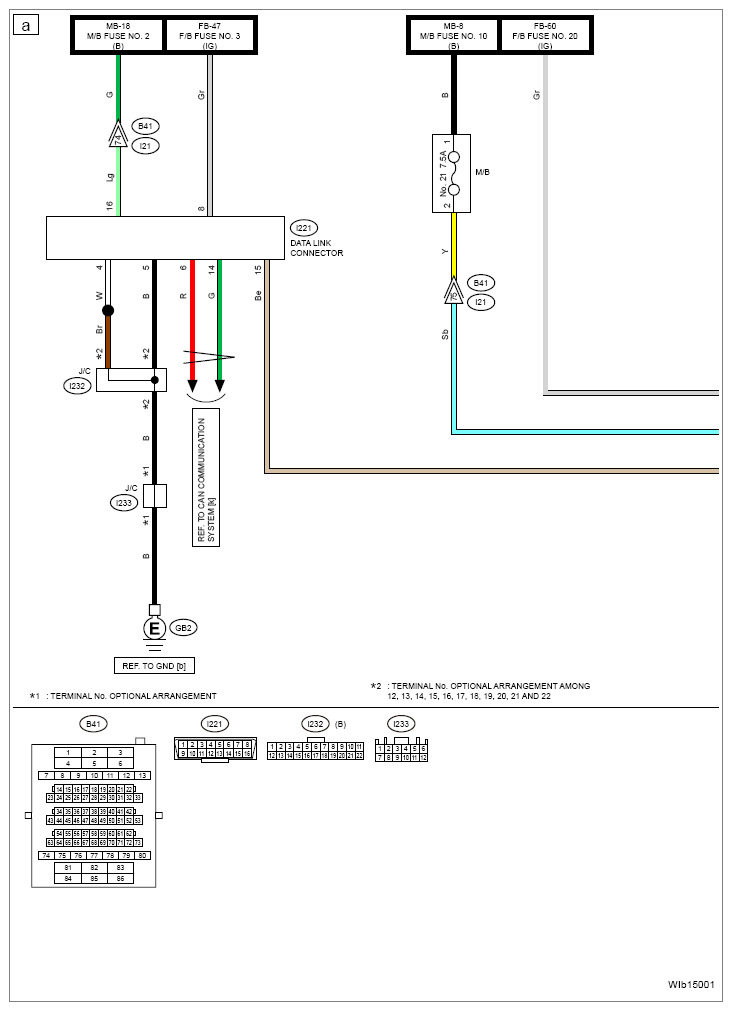

G16764477Courtesy of SUBARU OF AMERICA, INC.

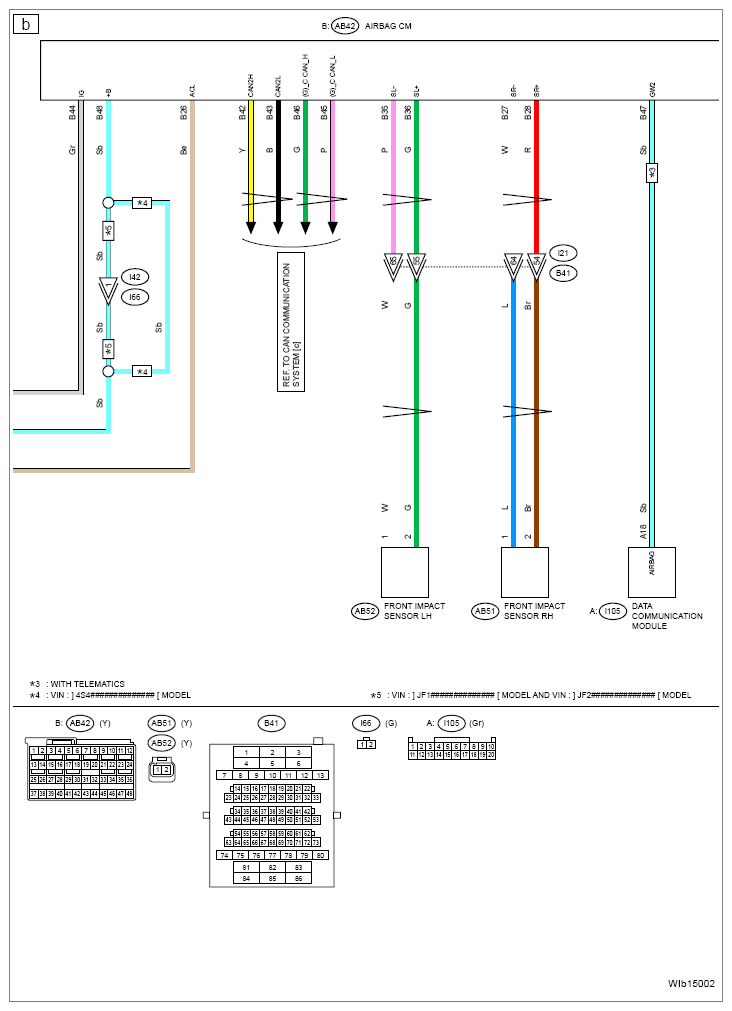

G16764478Courtesy of SUBARU OF AMERICA, INC.

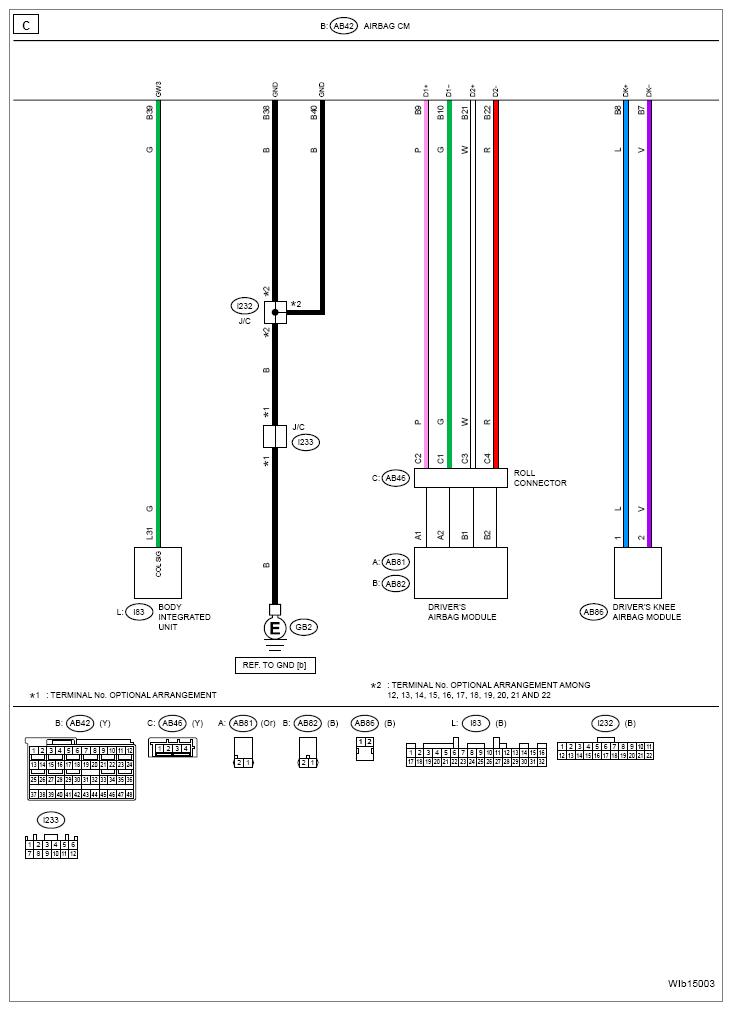

G16764479Courtesy of SUBARU OF AMERICA, INC.

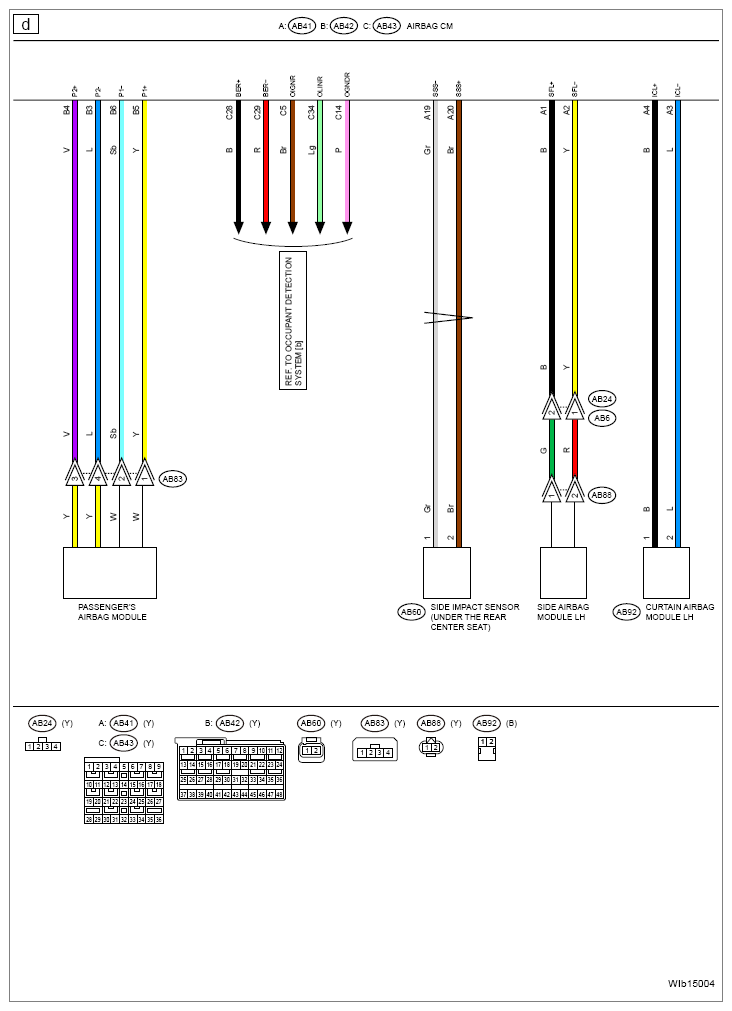

G16764480Courtesy of SUBARU OF AMERICA, INC.

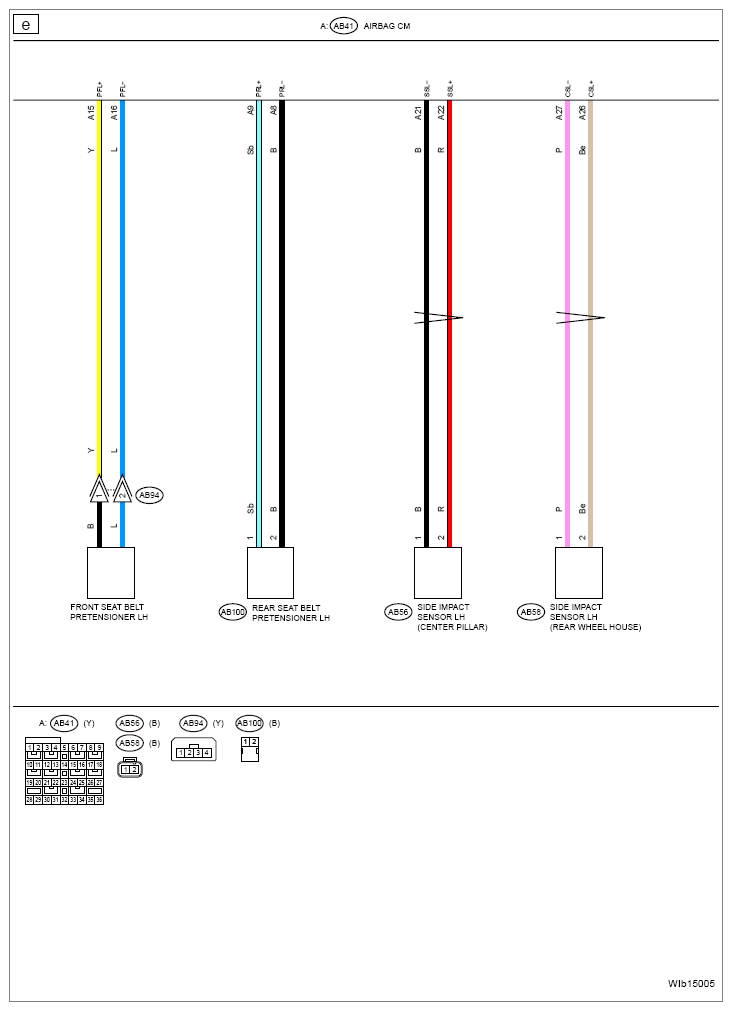

G16764481Courtesy of SUBARU OF AMERICA, INC.

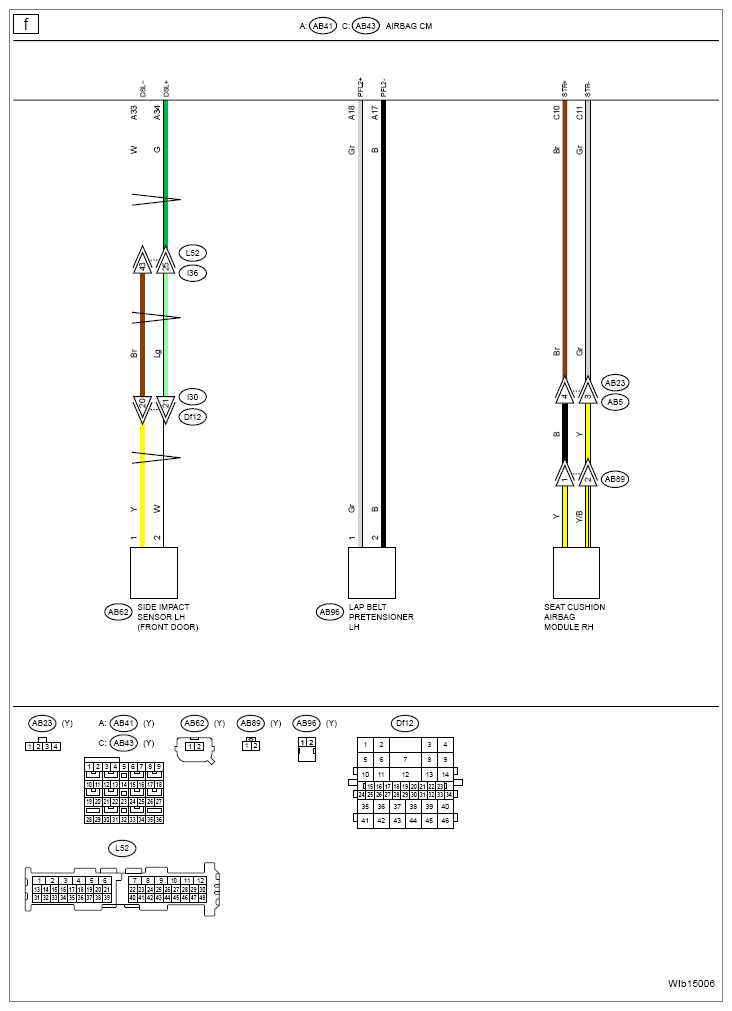

G16764482Courtesy of SUBARU OF AMERICA, INC.

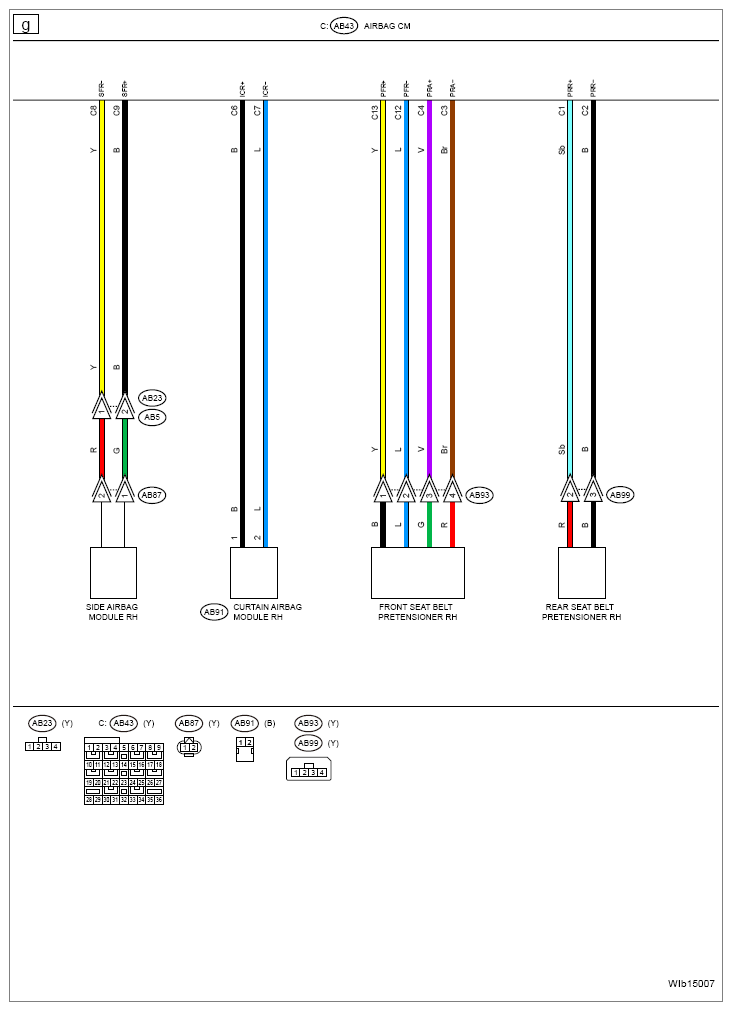

G16764483Courtesy of SUBARU OF AMERICA, INC.

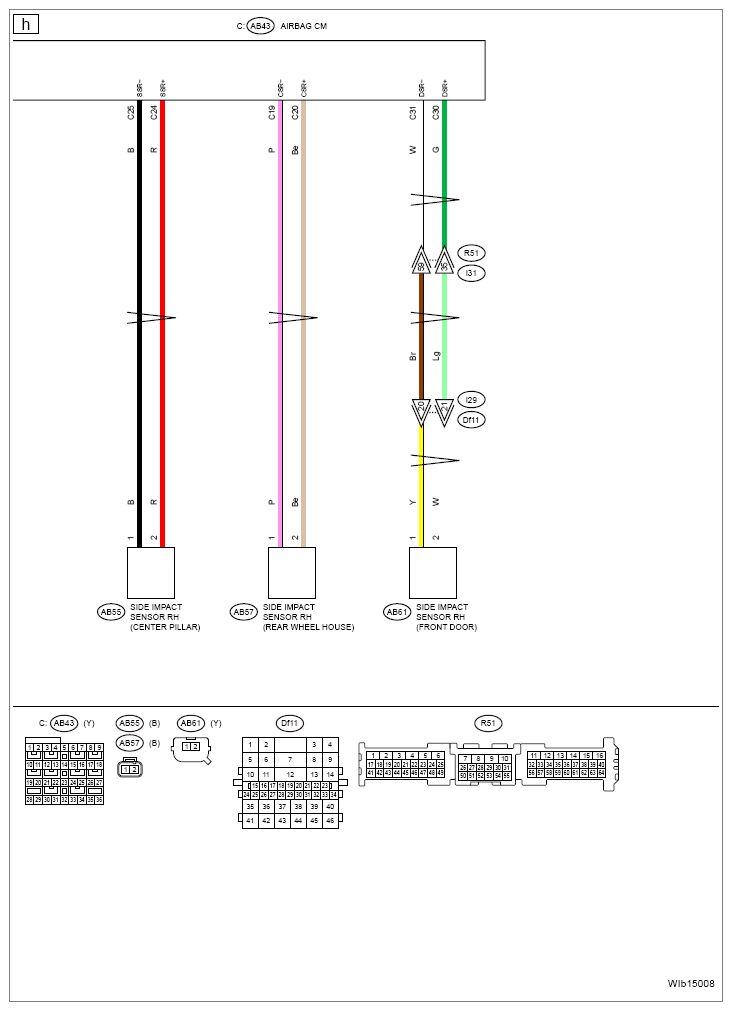

G16764484Courtesy of SUBARU OF AMERICA, INC.
