Push Button Ignition Switch: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the driver monitoring unit. (Model with driver monitoring system) Ref. to INSTRUMENTATION/DRIVER INFO>DRIVER MONITORING UNIT>REMOVAL .
  3. Remove the panel assembly center. Ref. to EXTERIOR/INTERIOR TRIM>CENTOR CLUSTER>REMOVAL .
  4. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .

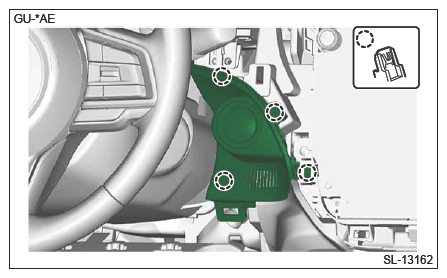

  5. Remove the panel start switch.
    1. Release the claw.
    2. Pull out the panel start switch.
      G16762326Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connector.
    4. Remove the panel start switch.
  6. Remove the push button start switch.
    1. Release the claw.
    2. Remove the push button start switch.
    G14612852Courtesy of SUBARU OF AMERICA, INC.
