Centor Cluster: Removal

NOTE: Components: Ref. to EXTERIOR/INTERIOR TRIM>GENERAL DESCRIPTION>COMPONENT>INSTRUMENT PANEL .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly instrument panel side RH.
    1. Release the clips.
    2. Remove the cover assembly instrument panel side RH.
      NOTE:
      • Use a plastic remover.
      • If removing is difficult, remove the weather strip and remove it from the gap using a plastic remover.

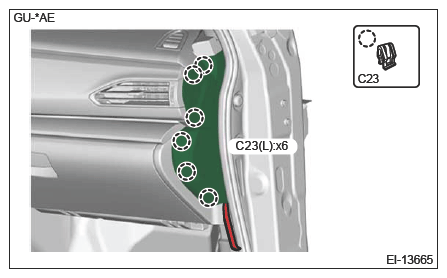

    G16762534Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the ornament panel mid passenger.
    1. Release the clips.
      • Type A

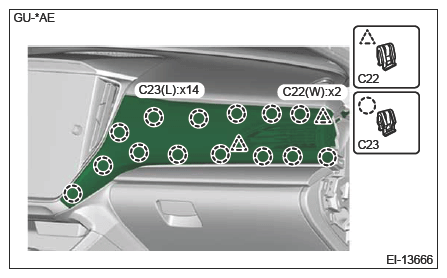

        G16762535Courtesy of SUBARU OF AMERICA, INC.
      • Type B

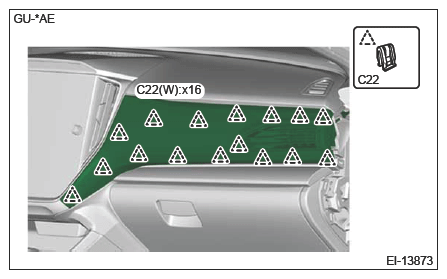

      G16762536Courtesy of SUBARU OF AMERICA, INC.
    2. Move the part in the direction of arrow to release the hook.

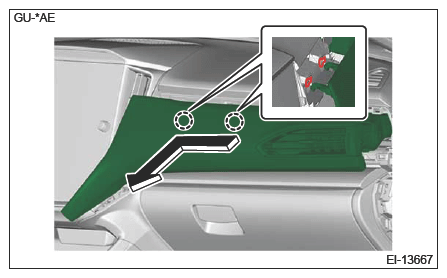

      G16762537Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the ornament panel mid passenger.
  4. Remove the driver monitoring unit. (Model with driver monitoring system) Ref. to INSTRUMENTATION/DRIVER INFO>DRIVER MONITORING UNIT>REMOVAL .
  5. Remove the panel assembly center.
    1. Remove the screws.
    2. Release the clips.
    3. Pull out the panel assembly center.
      NOTE: The number of clips varies depending on the specifications.

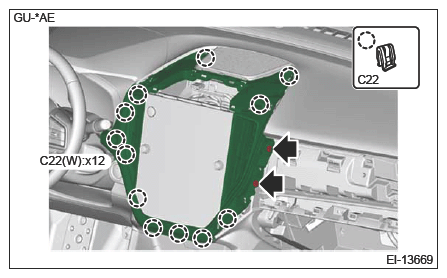

      G16762538Courtesy of SUBARU OF AMERICA, INC.
    4. Disconnect the connector.
    5. Remove the panel assembly center.
  6. Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL
