Hazard Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the driver monitoring unit. (Model with driver monitoring system) Ref. to INSTRUMENTATION/DRIVER INFO>DRIVER MONITORING UNIT>REMOVAL .
  3. Remove the panel assembly center. Ref. to EXTERIOR/INTERIOR TRIM>CENTOR CLUSTER>REMOVAL .
  4. Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL .

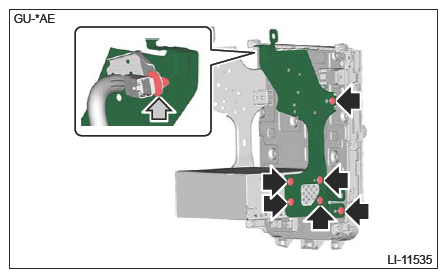

  5. Remove the unit bracket LH.
    1. Remove the connector clip.
    2. Remove the screws.
    3. Remove the unit bracket LH.
    G16767510Courtesy of SUBARU OF AMERICA, INC.

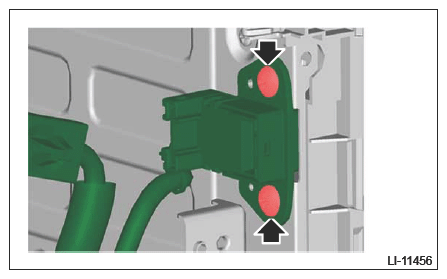

  6. Remove the switch hazard.
    1. Remove the screws.
    2. Remove the switch hazard.
    G16441297Courtesy of SUBARU OF AMERICA, INC.
