Reverse Idler Gear: Installation

1. Install the reverse coupling sleeve to the reverse idler gear No. 2.
   NOTE:

   • Install the reverse coupling sleeve in the correct direction.
   • Make sure that the oval-shaped cutout portion inside the reverse coupling sleeve matches the center of the reverse idler gear No. 2 groove.

   Courtesy of SUBARU OF AMERICA, INC.

2. Install the reverse shifting insert.
   NOTE:

   Press in the ball part to install.

   Courtesy of SUBARU OF AMERICA, INC.

3. Install the reverse baulk ring and reverse idler gear.

   Courtesy of SUBARU OF AMERICA, INC.

4. Install the needle bearing and reverse idler gear collar.

   Courtesy of SUBARU OF AMERICA, INC.

5. Install the thrust bearing and reverse idler gear washer.
   NOTE:

   Install the thrust bearing in the correct direction.

   Courtesy of SUBARU OF AMERICA, INC.

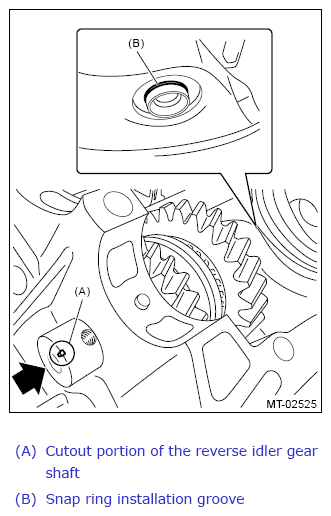

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

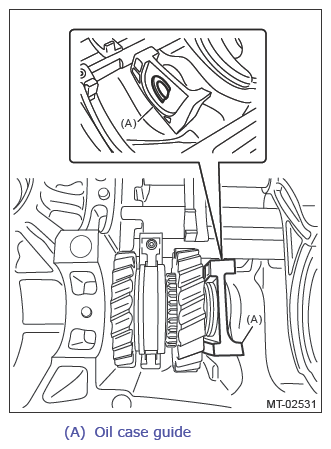

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
