Bumper Bracket

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL
  3. Remove the clips, and remove the cover UPR front.

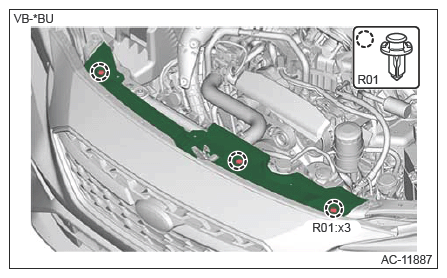

    G14612105Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER FACE
  5. Remove the bolts and clips, and remove the energy absorber plate UPR.

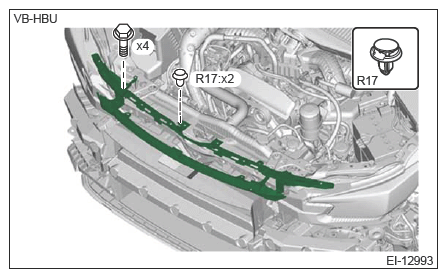

    G14612359Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the access buzzer. Ref. to SECURITY AND LOCKS>ACCESS BUZZER>REMOVAL
  7. Remove the bracket corner front.
    1. Remove the clips on the air guide UPR.
    2. Remove the bolts and clips, and remove the bracket corner front.

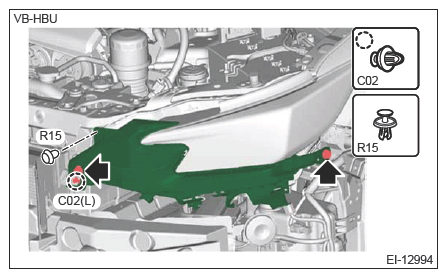

      G14612361Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the bracket side front.
    1. Remove the bolt and clip.
    2. Remove the claws from behind the fender front, and remove the bracket side front.

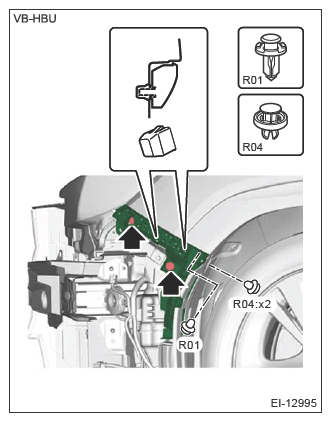

      G14612937Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL
  10. Remove the bracket center front LWR.
    1. Remove the screw and clip on the mud guard front.

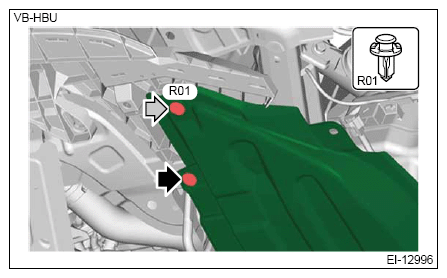

      G14612938Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the bolts and release the claws, and then remove the bracket center front LWR.

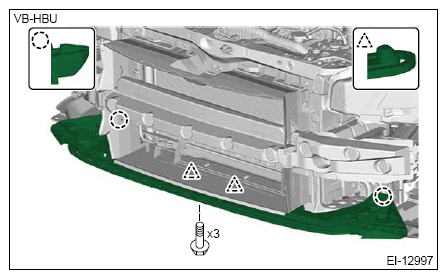

      G14612939Courtesy of SUBARU OF AMERICA, INC.
