Access Buzzer: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Lift up the vehicle.
  3. Remove the screw and clips, and turn over the mud guard front LH.
    G14612372Courtesy of SUBARU OF AMERICA, INC.

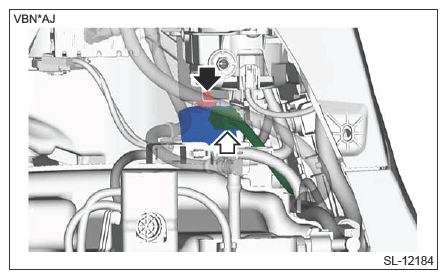

  4. Remove the access buzzer.
    1. Disconnect the connector.
    2. Remove the clip and detach the access buzzer.
      G14612855Courtesy of SUBARU OF AMERICA, INC.
