Low-Pressure Hose

  1. Using the refrigerant recovery system, discharge refrigerant. Ref. to AIR CONDITIONER>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
  2. Remove the vacuum hose COMPL and vacuum pipe assembly. Ref. to BRAKE>BRAKE BOOSTER>REMOVAL>BRAKE VACUUM HOSE .
  3. Remove the hose pressure suction.

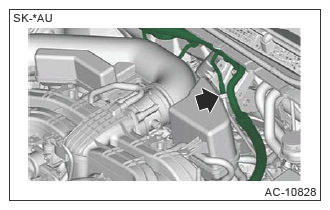

    1. Disconnect the pipe evaporator cooling from the hose pressure suction using the ST.
      G13226159Courtesy of SUBARU OF AMERICA, INC.

      Preparation tool:

      ST: DISCONNECT TOOL (73499SJ000)

      1. Open the disconnect tool, and set it to the pipe evaporator cooling while aligning the shape.
        G13226160Courtesy of SUBARU OF AMERICA, INC.
        NOTE: Spring force closes the cover automatically.
      2. While checking through the inspection hole (a) of the disconnect tool, press in the protrusion (b) into the engaging portion of the pipe evaporator cooling.
        G13226161Courtesy of SUBARU OF AMERICA, INC.
      3. While holding the condition in step 2, pull out the pipe evaporator cooling from the hose pressure suction in the direction of the arrow.
        G13226162Courtesy of SUBARU OF AMERICA, INC.
      4. Detach the disconnect tool, and remove the indicator ring (a).
        CAUTION:
        • Do not damage the indicator ring remaining on the vehicle, because it will be necessary if the pipe evaporator cooling is reused.
        • If the indicator ring has been lost or damaged, there is no way to confirm the secure engagement of parts. So replace the pipe evaporator cooling with a new part.
        G13226163Courtesy of SUBARU OF AMERICA, INC.

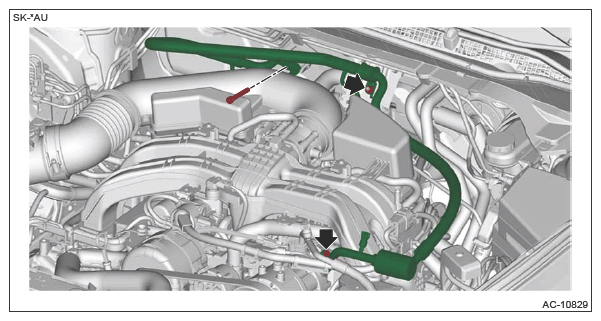

    2. Remove the bolt and nut, and detach the hose pressure suction.
      CAUTION:
      • Do not apply excessive force to the hose.
      • Seal the engaging part of disconnected hose, compressor assembly, and expansion valve with a plug or vinyl tape to prevent foreign matter from entering.
      G13226172Courtesy of SUBARU OF AMERICA, INC.
