Refrigerant Recovery Procedure: Procedure

  1. Perform compressor oil return operation. Ref. to AIR CONDITIONER>COMPRESSOR OIL>PROCEDURE .
  2. Turn the ignition switch to OFF.
  3. Remove the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>REMOVAL .
  4. Attach the manifold gauge set.
    CAUTION:
    • During operation, be sure to wear protective goggles and protective gloves.
    • Connect the refrigerant recovery system with the manifold gauge set to discharge the refrigerant from the A/C system and recycle the gas.
    • When recycling the discharged refrigerant, keep service cans on hand. Because the recovery rate with the recovery system is approx. 90%, service cans are necessary to charge the refrigerant.
    • Follow the detailed operation procedure described in the attached operation manual.

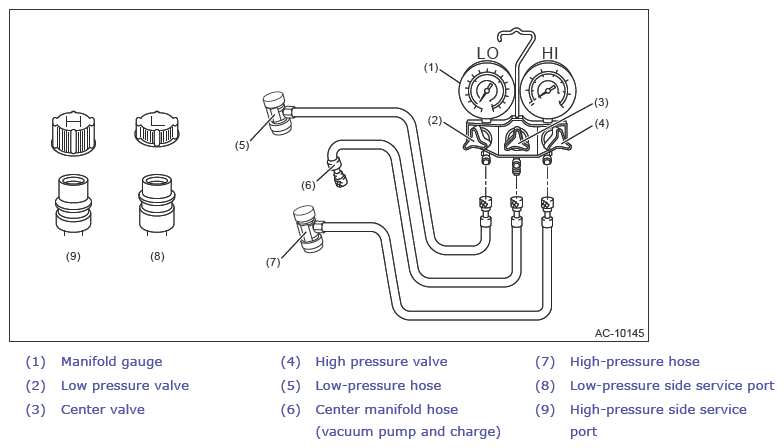

    G14394433Courtesy of SUBARU OF AMERICA, INC.

    Preparation tool:

    Manifold gauge set

    1. Check that all valves are fully closed.
    2. Install the low/high pressure hoses to the service ports on the low/high pressure sides of the vehicle respectively.
      CAUTION: Confirm that the connections are secure.
    3. Connect the center manifold hose to the refrigerant recovery system.

      Preparation tool:

      Refrigerant recovery system

  5. Follow the operation manual attached to the refrigerant recovery system to collect the refrigerant.
