Brake Vacuum Hose

  1. Remove the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>REMOVAL .
  2. Remove the vacuum hose & pipe.

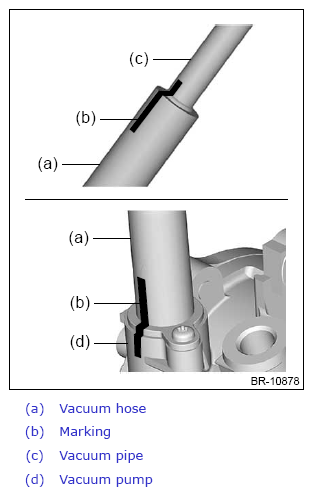

NOTE: Perform marking of the vacuum hose on the vacuum pump side as shown in the figure below.
G14385214Courtesy of SUBARU OF AMERICA, INC.
  1. Disconnect the vacuum hose from the vacuum pump.
    G13225416Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the pipe clamp from the bulkhead.
    G13225417Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the vacuum hose & pipe from the intake manifold assembly and the vacuum booster assembly.
    G13591762Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the vacuum hose from vacuum pipe.
G13591763Courtesy of SUBARU OF AMERICA, INC.
