Heater and Cooling Unit: Removal
CAUTION:
- Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
- Be careful not to damage the airbag system harness when servicing the instrument panel. Damage may cause the system to malfunction.
- Seal the disconnected hose, pipe and engaging part of expansion valve with a plug or vinyl tape to prevent foreign matter from entering.
- Using the refrigerant recovery system, discharge refrigerant. Ref. to AIR CONDITIONER>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
.NOTE:
- Release the shift lock and shift the select lever to the "N" position. Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
- For the power seat model, remove the console box before removing the ground terminal from the battery sensor.
- Drain the coolant from the radiator. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
- Disconnect the hose pressure suction on the expansion valve side. Ref. to AIR CONDITIONER>HOSE AND PIPE>REMOVAL>LOW-PRESSURE HOSE .

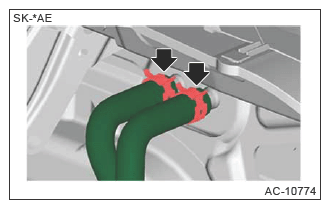

- Disconnect the hose heater outlet and the hose heater inlet.
- Remove the instrument panel assembly and the beam steering COMPL. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL ASSEMBLY>REMOVAL .
- Remove the duct foot. Ref. to AIR CONDITIONER>AIR VENT DUCT>REMOVAL>FOOT DUCT .

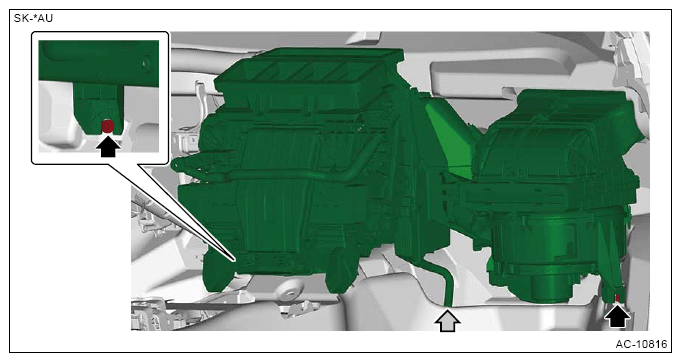

- Remove the heater and cooling unit assembly.
