Expansion Valve: Removal

  1. Using the refrigerant recovery system, discharge refrigerant. Ref. to AIR CONDITIONER>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
  2. Remove the strut tower bar RH. Ref. to FRONT SUSPENSION>STRUT TOWER BAR>REMOVAL .
  3. Disconnect the hose pressure suction.
    CAUTION:
    • Do not apply excessive force to the hose.
    • Seal the disconnected hose, pipe and engaging part of expansion valve with a plug or vinyl tape to prevent foreign matter from entering.

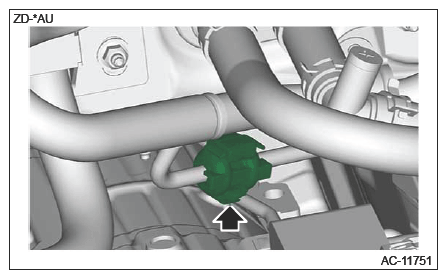

    1. Using ST, disconnect the quick connector.

      Preparation tool:

      ST: SP TL REMOVER PD (73499XA00A)

    G16526585Courtesy of SUBARU OF AMERICA, INC.
    1. Face collar side (A) of the quick connector (1) to the remover (2), and set lock part (B) on the stopper side (C) of the remover.
      G05346835Courtesy of SUBARU OF AMERICA, INC.
    2. Insert the remover taking care not to bend the needle (4) in the remover.
      G05346837Courtesy of SUBARU OF AMERICA, INC.
      G13200531Courtesy of SUBARU OF AMERICA, INC.
    3. With the pipe secured, press the label part (D) of the remover with a thumb. Connector is unlocked and the quick connector opens.
      G13200533Courtesy of SUBARU OF AMERICA, INC.
      G13200534Courtesy of SUBARU OF AMERICA, INC.
    4. Pull the remover (2) and separate the pipe (3) from the quick connector (1).
      G13200535Courtesy of SUBARU OF AMERICA, INC.
    5. Pull up the stopper (C) and remove the remover (2) and quick connector (1) from the pipe.
      G13200536Courtesy of SUBARU OF AMERICA, INC.
    6. Remove the quick connector (1) from the remover (2).
      G13200537Courtesy of SUBARU OF AMERICA, INC.

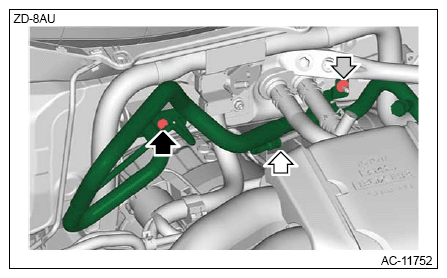

    7. Remove the bolts and nuts, and detach the hose pressure suction.
    G16526594Courtesy of SUBARU OF AMERICA, INC.

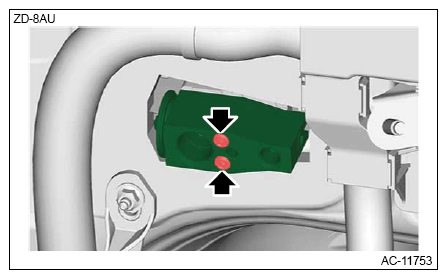

  4. Using the hexagon wrench, remove the bolts, then remove the expansion valve.
CAUTION: Seal the engaging part of pipe and expansion valve with a plug or vinyl tape to prevent foreign matter from entering.
G16526595Courtesy of SUBARU OF AMERICA, INC.
