Home >> Subaru >> 2022 >> BRZ Limited, Automatic Trans >> Repair and Diagnosis >> Suspension >> Front Suspension System And Wheel Alignment >> Strut Tower Bar >> Removal

Strut Tower Bar: Removal

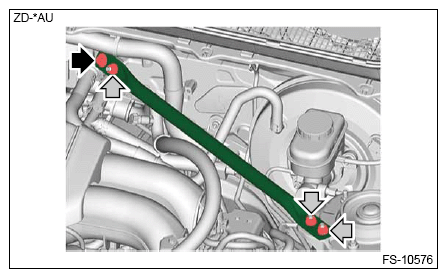

Remove the bolts and nuts, and then remove the strut tower bar.

G16524846

Courtesy of SUBARU OF AMERICA, INC.
