Refrigerant Recovery Procedure: Procedure

  1. Perform compressor oil return operation. Ref. to AIR CONDITIONER>COMPRESSOR OIL>OPERATION .
  2. Turn the ignition switch to OFF.
  3. Attach the manifold gauge set.
    CAUTION:
    • During operation, be sure to wear protective goggles and protective gloves.
    • Connect the refrigerant recovery system with the manifold gauge set to discharge the refrigerant from the A/C system and recycle the gas.
    • When recycling the discharged refrigerant, keep service cans on hand. Because the recovery rate with the recovery system is approx. 90%, service cans are necessary to charge the refrigerant.
    • Follow the detailed operation procedure described in the attached operation manual.

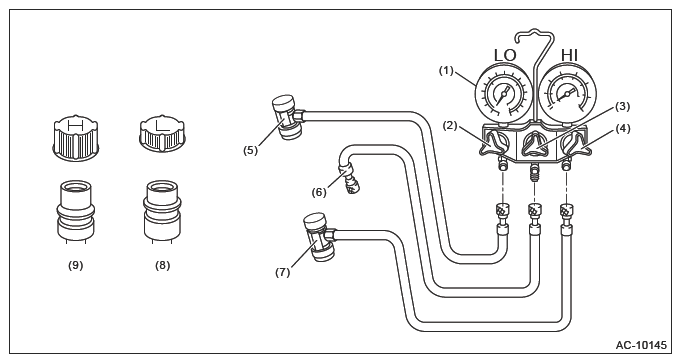

    G16341561Courtesy of SUBARU OF AMERICA, INC.
    (1) Manifold gauge
    (2) Low pressure valve
    (3) Center valve
    (4) High pressure valve
    (5) Low-pressure hose
    (6) Center manifold hose (vacuum pump and charge)
    (7) High-pressure hose
    (8) Low-pressure side service port
    (9) High-pressure side service port
    1. Check that all valves are fully closed.
    2. Install the low/high pressure hoses to the service ports on the low/high pressure sides of the vehicle respectively.
      CAUTION: Confirm that the connections are secure.
    3. Connect the center manifold hose to the refrigerant recovery system.
  4. Follow the operation manual attached to the refrigerant recovery system to collect the refrigerant.
