Evaporator Sensor: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Using the refrigerant recovery system, discharge refrigerant. Ref. to AIR CONDITIONER>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Drain the coolant from the radiator. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  4. Disconnect the hose pressure suction on the expansion valve side. Ref. to AIR CONDITIONER>HOSE AND PIPE>REMOVAL .
  5. Remove the instrument panel assembly and the beam steering COMPL. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL ASSEMBLY>REMOVAL .
  6. Remove the heater and cooling unit assembly. Ref. to AIR CONDITIONER>HEATER AND COOLING UNIT>REMOVAL .
  7. Remove the duct foot passenger. Ref. to AIR CONDITIONER>AIR VENT DUCT>REMOVAL>FOOT DUCT .
  8. Remove the screws and release the connector clips and claws, and then remove the case assembly heater unit.
    G16526580Courtesy of SUBARU OF AMERICA, INC.

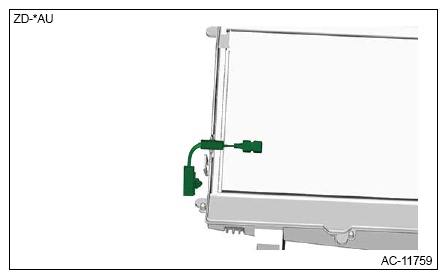

  9. Remove the evaporator sensor.
G16526619Courtesy of SUBARU OF AMERICA, INC.
