Cam Carrier RH

Set the part so that the cylinder head RH is on the upper side.

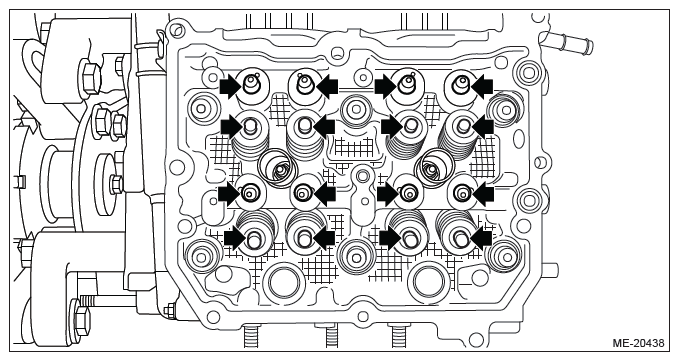

Apply engine oil to the valve shim and the roller rocker arm pivot, and install the valve shim and the roller rocker arm pivot to the cylinder head RH.

Courtesy of SUBARU OF AMERICA, INC.

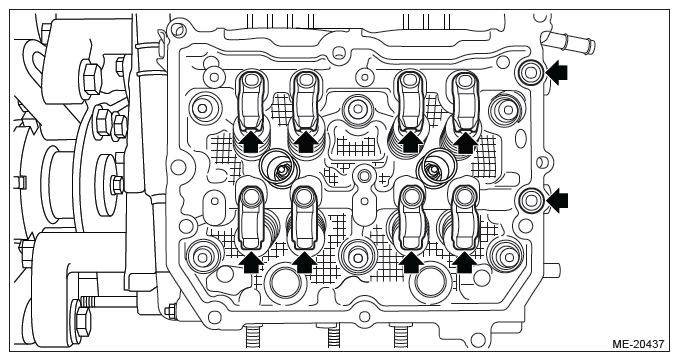

Apply engine oil to the O-ring and the roller rocker arm, and install the O-ring and the roller rocker arm to the cylinder head RH.
NOTE: Use new O-rings.

Courtesy of SUBARU OF AMERICA, INC.

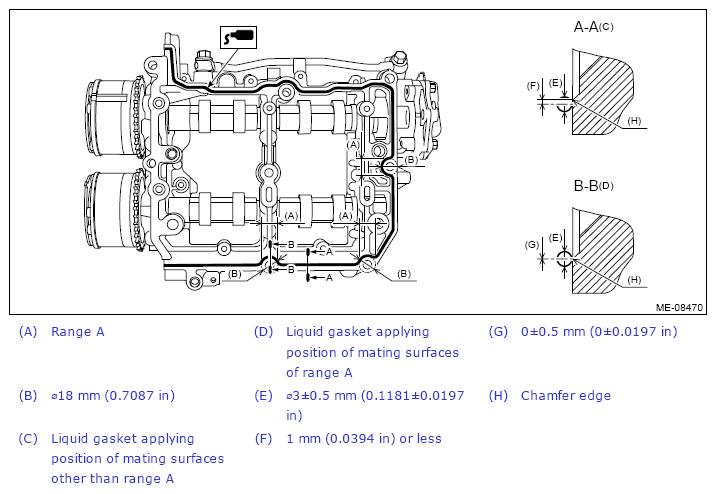

Apply liquid gasket to the mating surface of cam carrier RH as shown in the figure.
NOTE:
- Before applying liquid gasket, degrease the old liquid gasket seal surface of the cylinder head RH and cam carrier RH.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

Liquid gasket applying diameter:

3±0.5 mm (0.1181±0.0197 in)

Courtesy of SUBARU OF AMERICA, INC.

Install the cam carrier RH to the cylinder head RH.

Mount the cam carrier RH, then tighten all bolts with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.

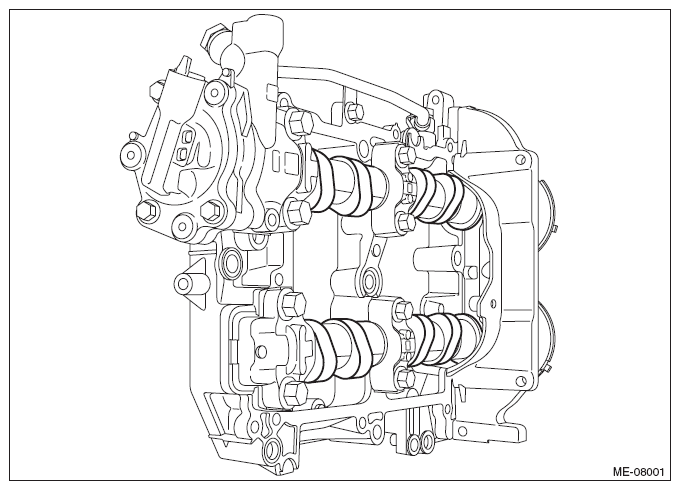

NOTE: Set the intake camshaft RH and the exhaust camshaft RH to the zero-lift position as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

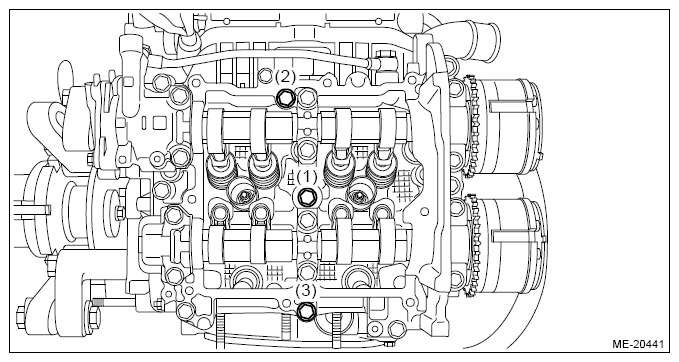

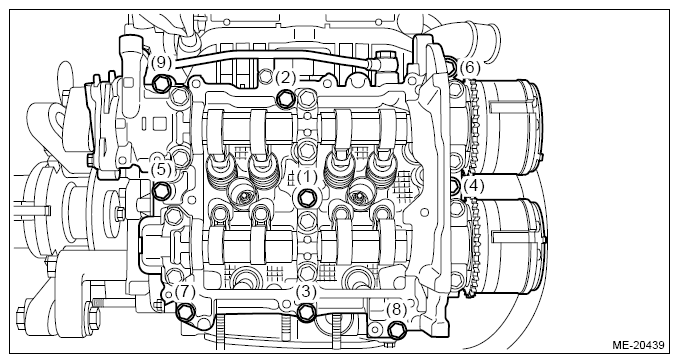

Fig 1: Cam Carrier RH Bolts (Tightening Sequence)

Courtesy of SUBARU OF AMERICA, INC.

Loosen the bolts (3 places) by 180° in numerical order as shown in the figure.

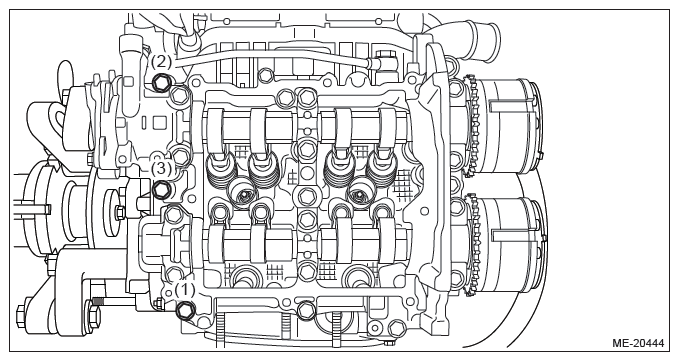

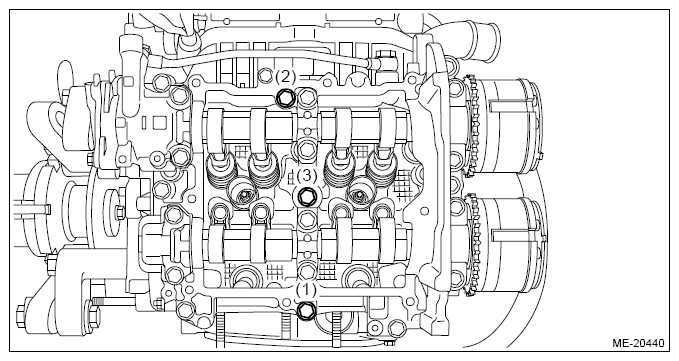

Fig 2: Cam Carrier RH Bolts (Loosening Sequence)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts (3 places) with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.

Fig 3: Cam Carrier RH Bolts (Tightening Sequence)
Courtesy of SUBARU OF AMERICA, INC.
Loosen the bolts (3 places) by 180° in numerical order as shown in the figure.

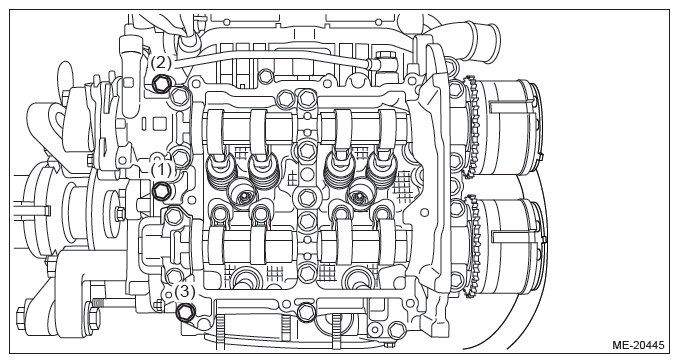

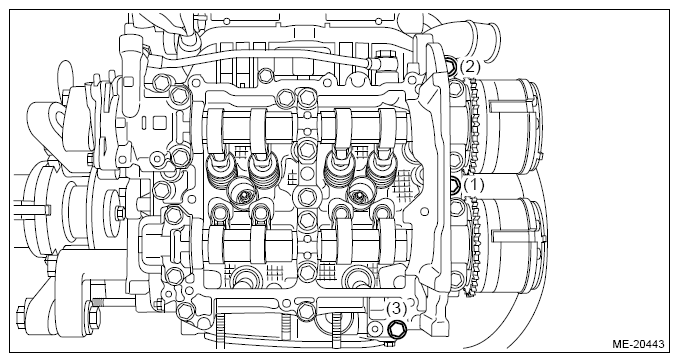

Fig 4: Cam Carrier RH Bolts (Loosening Sequence)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts (3 places) with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.

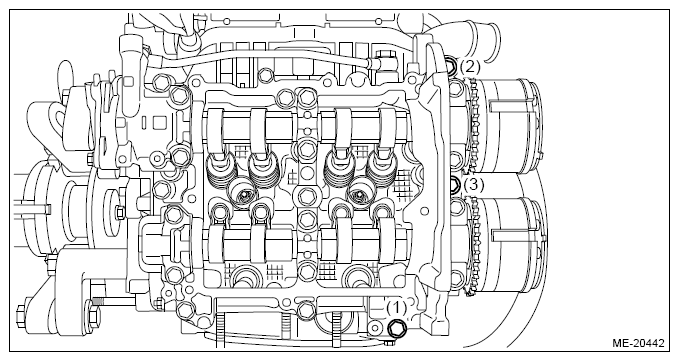

Fig 5: Cam Carrier RH Bolts (Tightening Sequence)
Courtesy of SUBARU OF AMERICA, INC.
Loosen the bolts (3 places) by 180° in numerical order as shown in the figure.

Fig 6: Cam Carrier RH Bolts (Loosening Sequence)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts (3 places) with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.

NOTE: After tightening, if the liquid gasket is squeezed out onto the seal surface of the chain cover, completely remove any squeezed-out liquid gasket.

Fig 7: Cam Carrier RH Bolts (Tightening Sequence)

Courtesy of SUBARU OF AMERICA, INC.

Set the part so that the intake manifold is on the upper side.
When the cam carrier RH has been disassembled
NOTE: When the cam carrier RH has been disassembled, perform the following steps also.
1. Install the cam sprocket RH. Refer to MECHANICAL(W/O STI)>CAM SPROCKET>INSTALLATION>CAM SPROCKET RH .
2. Install the scavenge pump. Refer to LUBRICATION(W/O STI)>SCAVENGE PUMP>INSTALLATION .
NOTE: When installing the scavenge pump, do not turn the intake camshaft RH to the outside of range of zero-lift (in range where it can be turned lightly by hand).
Check the cam clearance. Refer to MECHANICAL(W/O STI)>CAM CLEARANCE>INSPECTION>WHEN TIMING CHAIN ASSEMBLY IS REMOVED .

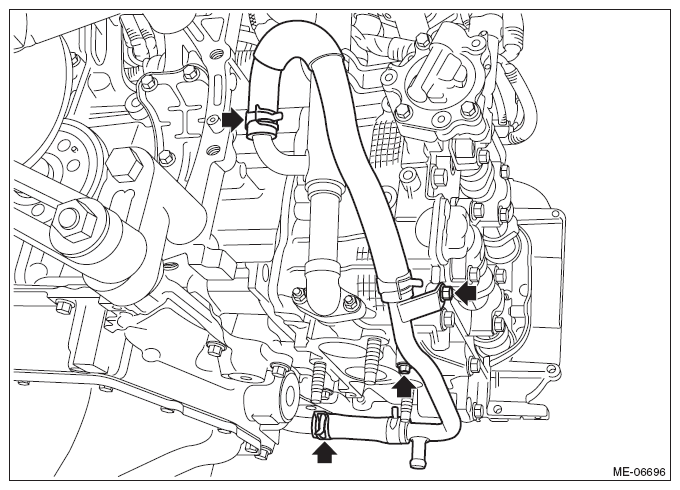

Connect the water pipe hose to oil pan upper and EGR cooler, and install the water pipe assembly.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

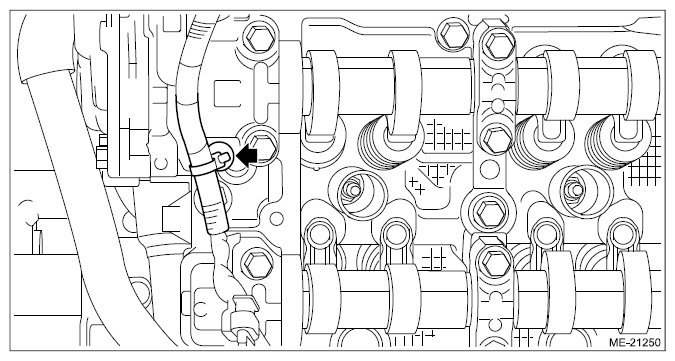

Secure the engine wiring harness to the cam carrier RH with a clip.

Courtesy of SUBARU OF AMERICA, INC.
Install the oil pipe assembly. Refer to LUBRICATION(W/O STI)>OIL PIPE>INSTALLATION>OIL PIPE ASSEMBLY .
Install the rocker cover RH. Refer to MECHANICAL(W/O STI)>ROCKER COVER>INSTALLATION>ROCKER COVER RH .
Install the timing chain RH. Refer to MECHANICAL(W/O STI)>TIMING CHAIN ASSEMBLY>INSTALLATION>TIMING CHAIN RH .
Install the engine to the vehicle. Refer to MECHANICAL(W/O STI)>ENGINE ASSEMBLY>INSTALLATION .
