Cam Sprocket RH
- Intake cam sprocket RH

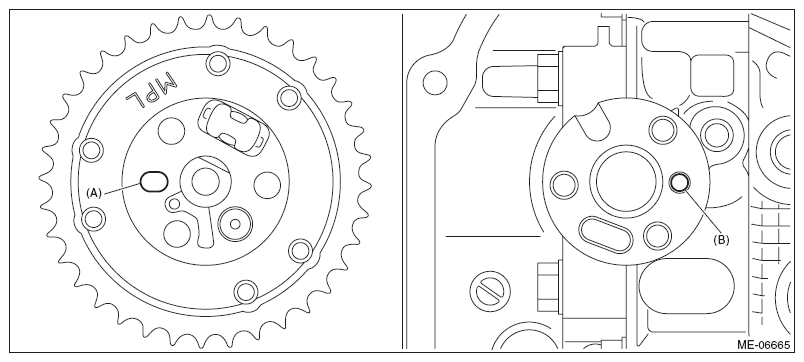

- Install the intake cam sprocket RH by aligning the knock hole (A) of intake cam sprocket RH and the knock pin (B) of intake camshaft RH.NOTE: Before installation, check that there is no foreign matter on the intake cam sprocket RH and intake camshaft RH.

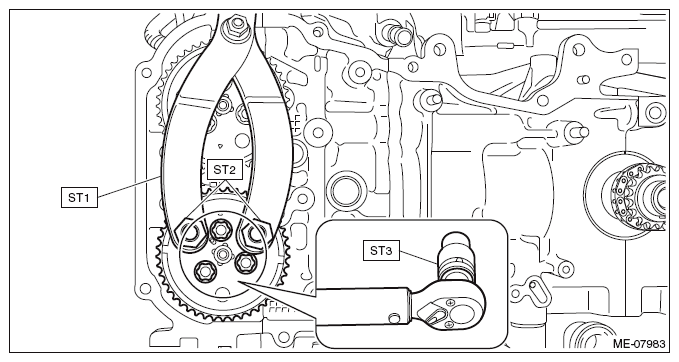

- Hold the intake cam sprocket RH using the ST1 and ST2, and install the bolts using the ST3.CAUTION: Perform the operation carefully since the ST comes off easily.NOTE: Apply engine oil to the bolt thread.
ST1 18355AA000 PULLEY WRENCH ST2 18334AA020 PULLEY WRENCH PIN SET ST3 18270KA010 SOCKET Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the timing chain RH. Refer to MECHANICAL(W/O STI)>TIMING CHAIN ASSEMBLY>INSTALLATION>TIMING CHAIN RH .
- Exhaust cam sprocket RH

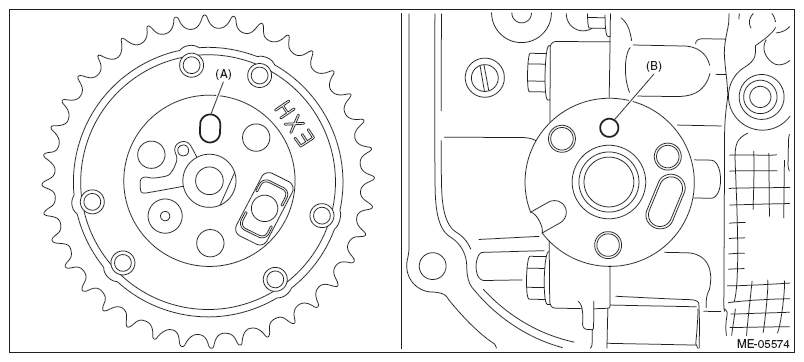

- Install the exhaust cam sprocket RH by aligning the knock hole (A) of exhaust cam sprocket RH and the knock pin (B) of exhaust camshaft RH.NOTE: Before installation, check that there is no foreign matter on the exhaust cam sprocket RH and exhaust camshaft RH.

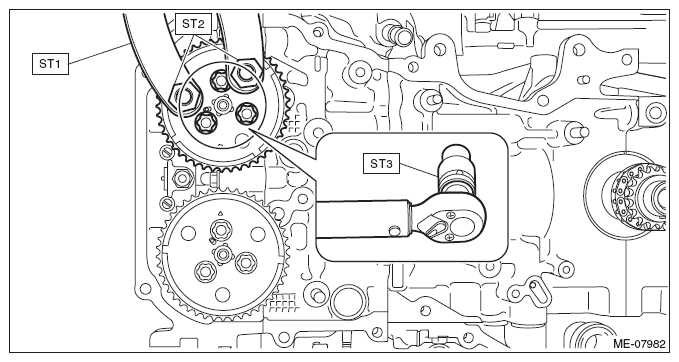

- Hold the exhaust cam sprocket RH using ST1 and ST2, and install the bolts using ST3.CAUTION: Perform the operation carefully since the ST comes off easily.NOTE: Apply engine oil to the bolt thread.
ST1 18355AA000 PULLEY WRENCH ST2 18334AA020 PULLEY WRENCH PIN SET ST3 18270KA010 SOCKET Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the timing chain RH. Refer to MECHANICAL(W/O STI)>TIMING CHAIN ASSEMBLY>INSTALLATION>TIMING CHAIN RH .
- Install the exhaust cam sprocket RH by aligning the knock hole (A) of exhaust cam sprocket RH and the knock pin (B) of exhaust camshaft RH.
