Rocker Cover RH

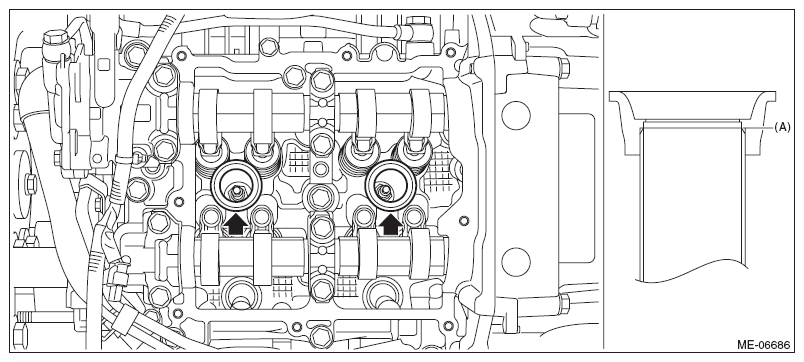

Install the #1 spark plug pipe gasket and #3 spark plug pipe gasket to the #1 spark plug pipe and #3 spark plug pipe.
NOTE:
- Use a new #1 spark plug pipe gasket and #3 spark plug pipe gasket.
- Apply a light coat of engine oil to the #1 spark plug pipe gasket and #3 spark plug pipe gasket, and insert them onto the spark plug pipe edge (A).
Courtesy of SUBARU OF AMERICA, INC.
Install the rocker cover gasket RH to the rocker cover RH.
NOTE: Use a new rocker cover gasket RH.

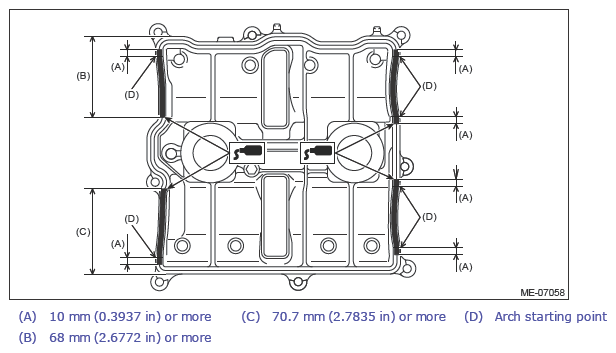

Apply liquid gasket to the mating surface of rocker cover RH as shown in the figure.
NOTE:
- Before applying liquid gasket, degrease the old liquid gasket seal surface of the engine.
- Be careful not to allow liquid gasket to be squeezed out from rocker cover RH.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

Liquid gasket applying diameter:

3±1 mm (0.1181±0.0394 in)

Courtesy of SUBARU OF AMERICA, INC.

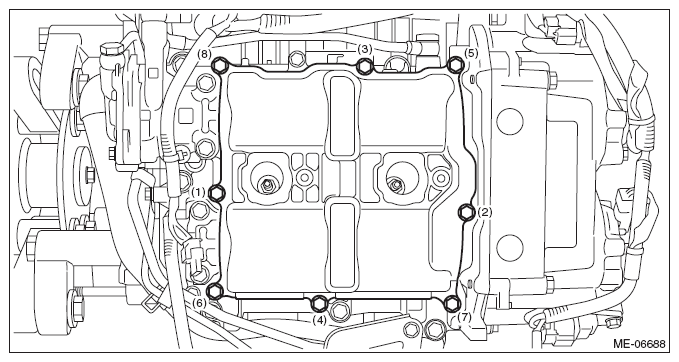

Set the rocker cover RH, and tighten the bolts in numerical order as shown in the figure.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 1: Rocker Cover RH Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the #1 ignition coil and the #3 ignition coil. Refer to IGNITION(W/O STI)>IGNITION COIL>INSTALLATION .
When working on the vehicle

NOTE: When working on the vehicle, perform the following steps also.
