Water Pump

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the water pump pulley. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>WATER PUMP>REMOVAL>WATER PUMP PULLEY .
  3. Drain engine coolant. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  4. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .

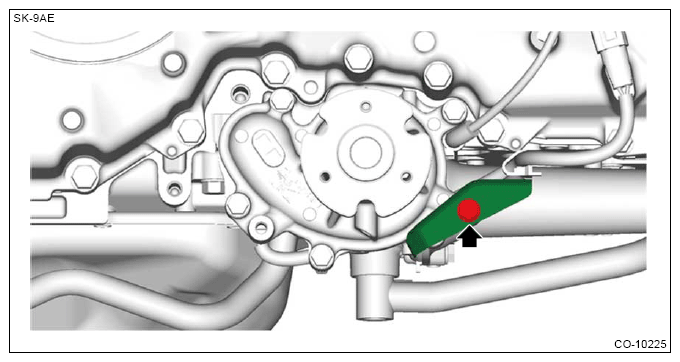

  5. Remove the harness stay. (2.5 L model)
    G13224666Courtesy of SUBARU OF AMERICA, INC.

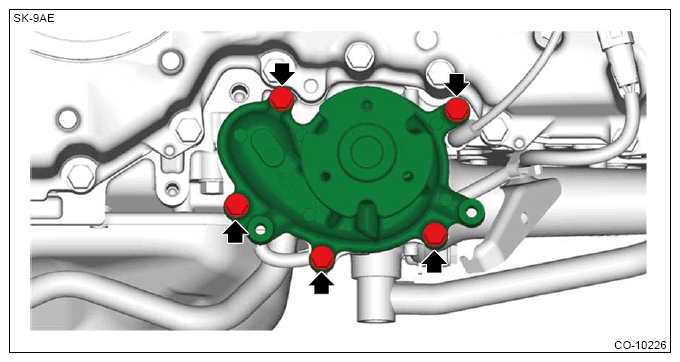

  6. Remove the water pump.
    G13224667Courtesy of SUBARU OF AMERICA, INC.
