Water Pump Pulley
WARNING: This page is about a different variant/trim than selected.
- Remove the V-belts. Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>V-BELT>REMOVAL>GASOLINE ENGINE MODEL .

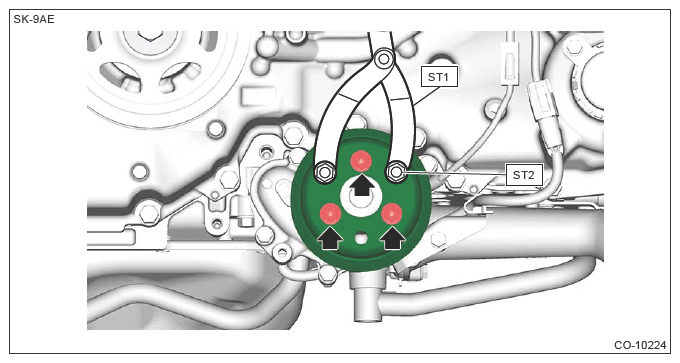

- Using the ST1 and ST2, remove the water pump pulley.
Preparation tool:
ST1: PULLEY WRENCH (18355AA000)
ST2: PULLEY WRENCH PIN SET (18334AA020)
