Water Pipe LH

WARNING: This page is about a different variant/trim than selected.
  1. Remove the striker - front hood. Ref. to EXTERIOR BODY PANELS>FRONT HOOD>DISASSEMBLY .
  2. Fully open the front hood. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>STAY ASSEMBLY - FRONT HOOD .
  3. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  4. Drain engine coolant. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  5. Remove the V-belt covers.
    G12391348Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>REMOVAL .
  7. Remove the clip from the air intake boot, and loosen the clamp.
    G11252776Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G11252777Courtesy of SUBARU OF AMERICA, INC.

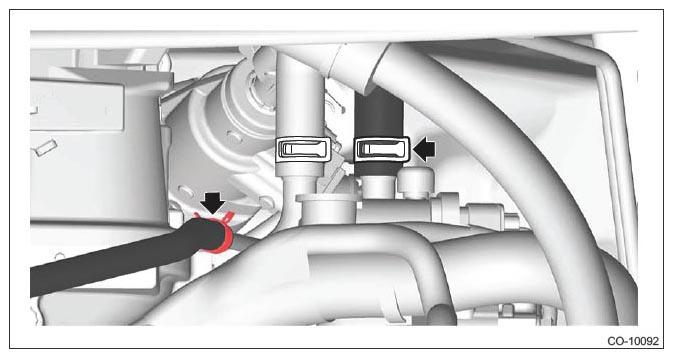

  9. Disconnect the preheater hose and the heater outlet hose from the water pipe LH.
    G11253570Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the TCM. (Impreza CVT model) Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSMISSION CONTROL MODULE (TCM)>REMOVAL .
  11. Turn the transmission harness clockwise till the bolt hole can be seen as shown in the figure, and tighten the bolt to temporarily lock the harness. (Impreza CVT model)
    NOTE: This procedure is required to prevent the transmission harness from touching the vehicle body during engine removal/installation.
    G11253157Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the pitching stopper. (Except for Impreza CVT model)

    CVT model:  Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>TRANSMISSION MOUNTING SYSTEM>REMOVAL>PITCHING STOPPER .

    5MT model:  Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>TRANSMISSION MOUNTING SYSTEM>REMOVAL>PITCHING STOPPER .

    6MT model:  Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>TRANSMISSION MOUNTING SYSTEM>REMOVAL>PITCHING STOPPER .

  13. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .
  14. Remove the nuts which secure the engine mounting to the front crossmember. (CVT model)
    G11253160Courtesy of SUBARU OF AMERICA, INC.

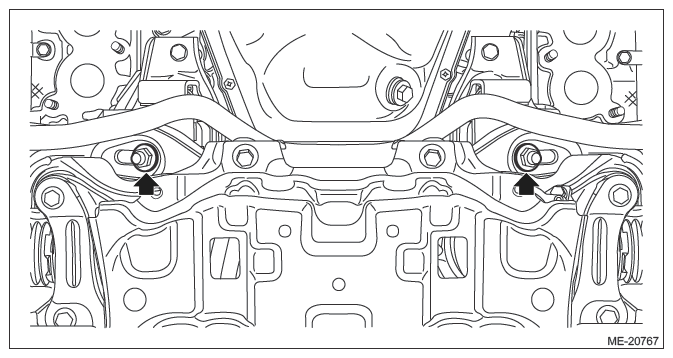

  15. Remove the nuts which secure the engine mounting to the front crossmember. (MT model)
    G11253161Courtesy of SUBARU OF AMERICA, INC.

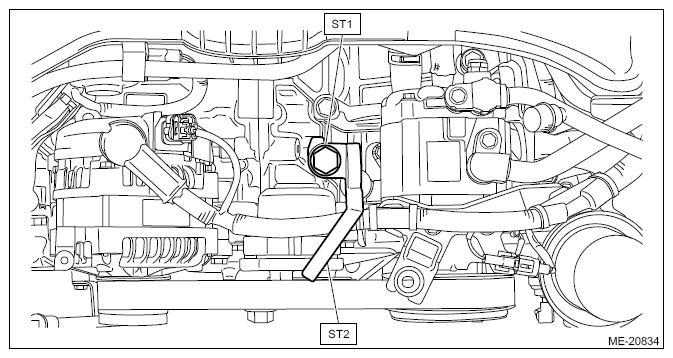

  16. Attach the ST1 and ST2.

    Preparation tool:

    ST1: BOLT (18363AA050)

    ST2: HANGER (18360AA040)

    Tightening torque:

    43 N.m (4.4 kgf-m, 31.7 ft-lb)

    G11253302Courtesy of SUBARU OF AMERICA, INC.

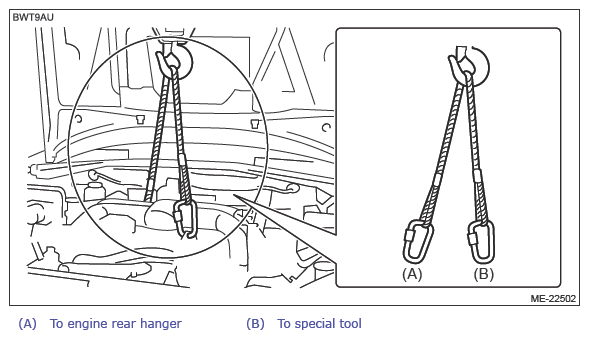

  17. Lift up the engine with a lifting device and wire ropes.
    CAUTION: When lifting up the engine, pay attention to the clearance of each part and be careful not to lift the engine too much, in order to prevent damaging the vehicle.
    G13876538Courtesy of SUBARU OF AMERICA, INC.

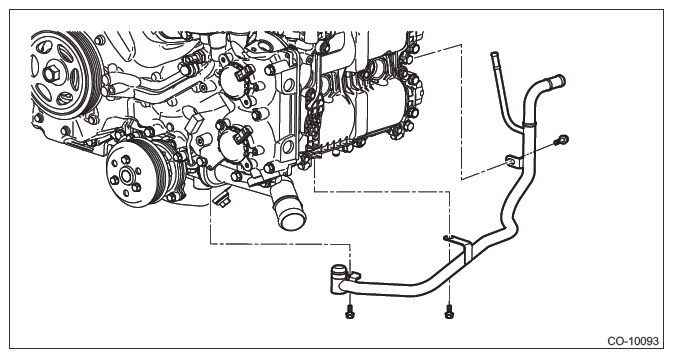

  18. Remove the water pipe LH.
    G11253576Courtesy of SUBARU OF AMERICA, INC.
