Pitching Stopper

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clip from the air intake boot, and loosen the clamp.
    G11252776Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION:

    Be careful not to pull out the PCV hose.

    G11252777Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air breather hose bracket.
    G11255511Courtesy of SUBARU OF AMERICA, INC.

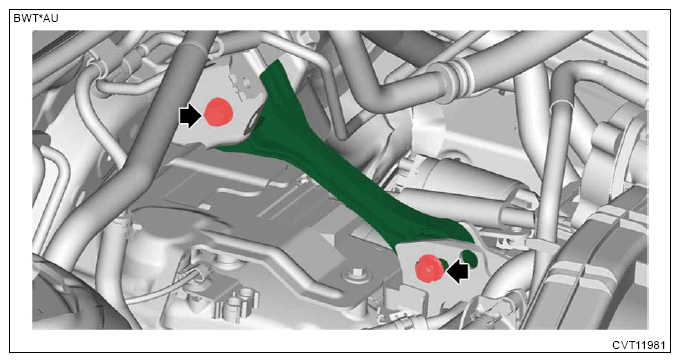

  4. Remove the pitching stopper.
    G13603143Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the pitching stopper bracket.
    NOTE:

    Perform this procedure only when required.

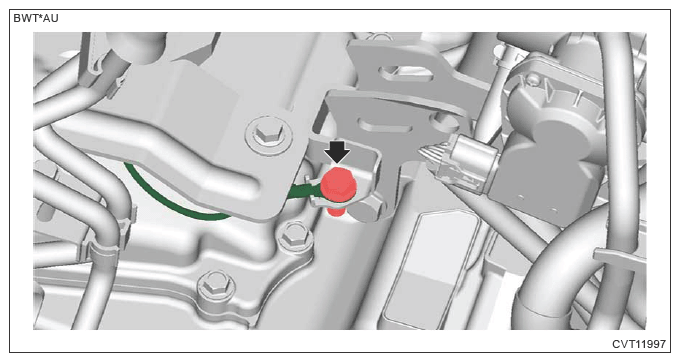

    1. Disconnect the ground cord.
      G13603144Courtesy of SUBARU OF AMERICA, INC.

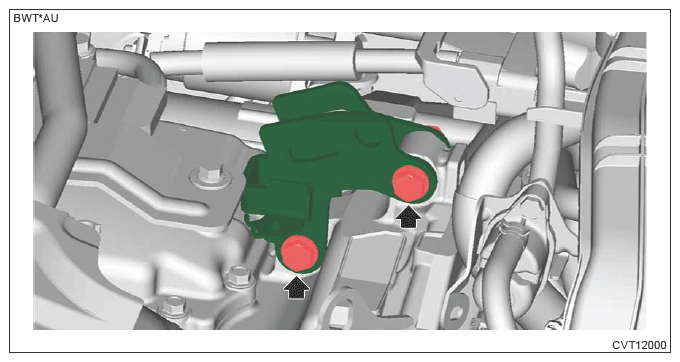

    2. Remove the pitching stopper bracket.
G13603145Courtesy of SUBARU OF AMERICA, INC.
