2.0 L Model

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G11252776Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G11252777Courtesy of SUBARU OF AMERICA, INC.

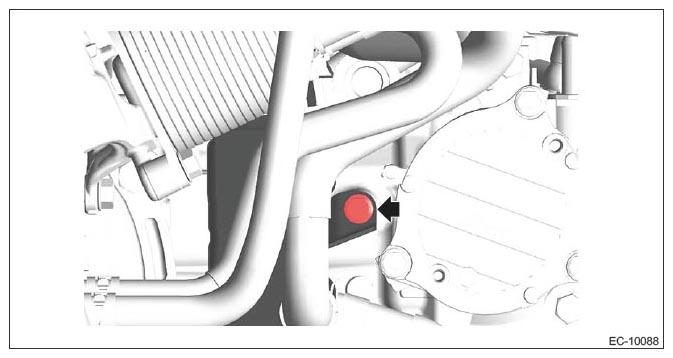

  4. Loosen the bolts holding the EGR cooler to the cylinder head RH.
    G11253043Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the EGR pipe. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO (EXCEPT FOR HEV))>EGR PIPE>REMOVAL .
  6. Remove the PCV hose No. 1. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO (EXCEPT FOR HEV))>PCV HOSE>REMOVAL>PCV HOSE NO. 1 .

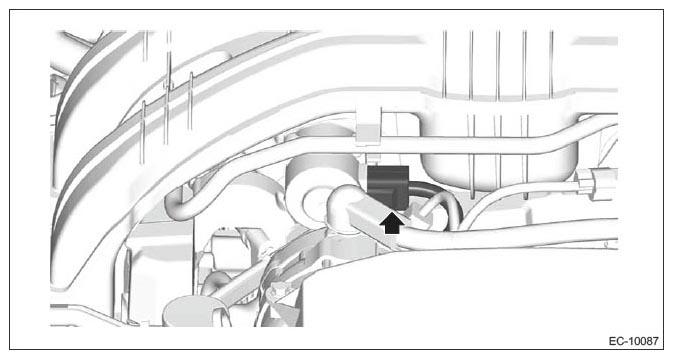

  7. Disconnect the connector.
    G11253044Courtesy of SUBARU OF AMERICA, INC.

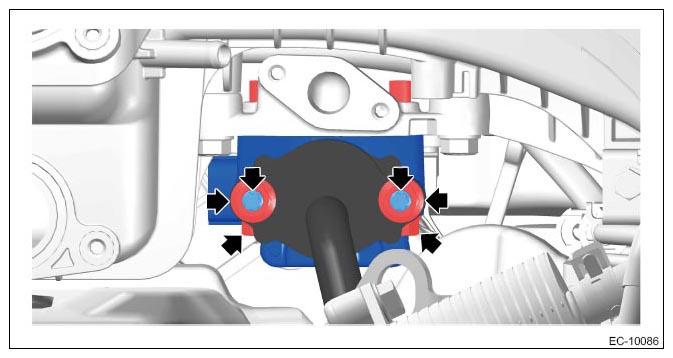

  8. Remove the nuts securing the EGR cooler, and remove the stud bolts using TORX® E8.
  9. Remove the EGR control valve from the EGR pipe adapter.
    G11253045Courtesy of SUBARU OF AMERICA, INC.

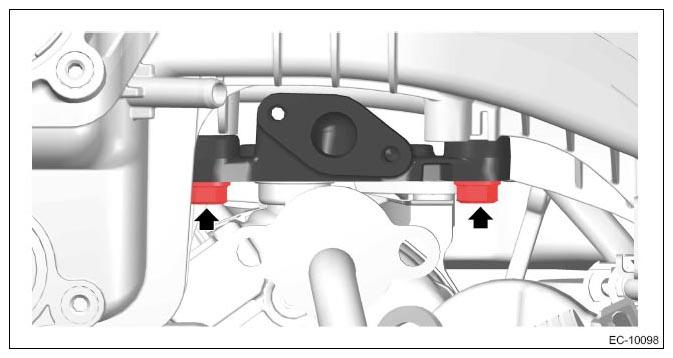

  10. Remove the EGR pipe adapter from the intake manifold assembly.
    G11253046Courtesy of SUBARU OF AMERICA, INC.
