EGR Pipe: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clip from the air intake boot, and loosen the clamp.
    G11252776Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G11252777Courtesy of SUBARU OF AMERICA, INC.

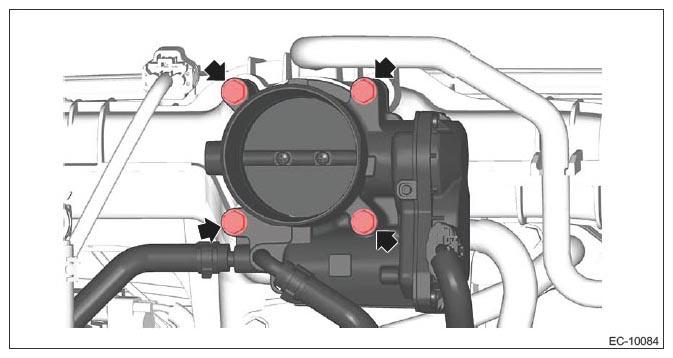

  3. Remove the bolts securing the throttle body to the intake manifold assembly, and tilt the throttle body to the rear side of vehicle.
    G11253050Courtesy of SUBARU OF AMERICA, INC.

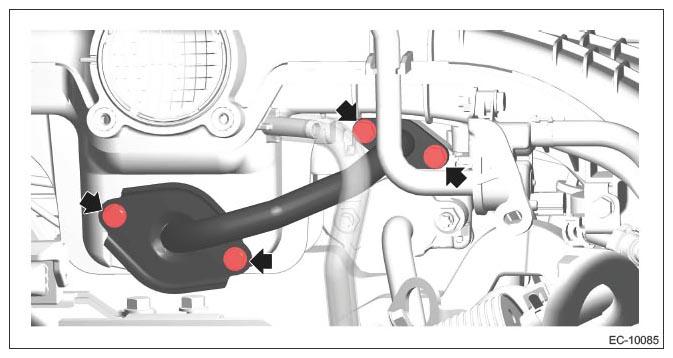

  4. Remove the bolts securing the EGR pipe to the intake manifold assembly and EGR control valve, and remove the EGR pipe.
    G11253051Courtesy of SUBARU OF AMERICA, INC.
