PCV Hose No. 1

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not remove except when the PCV hose is broken.

Remove the clip from the air intake boot, and loosen the clamp.

Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot, and place it aside so that it does not interfere with the work.
CAUTION: Be careful not to pull out the PCV hose.

Courtesy of SUBARU OF AMERICA, INC.

Remove the PCV hose No. 1 from the intake manifold assembly and the PCV valve.

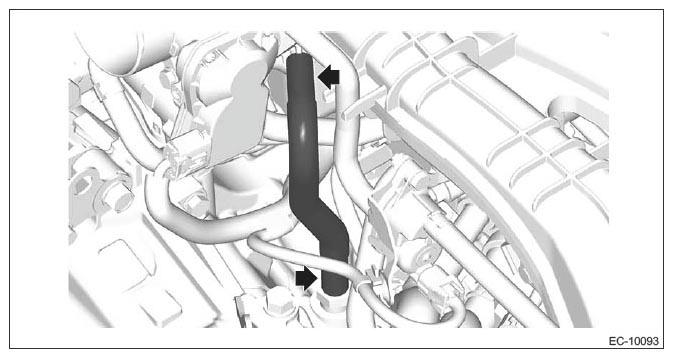

2.0 L model

Courtesy of SUBARU OF AMERICA, INC.

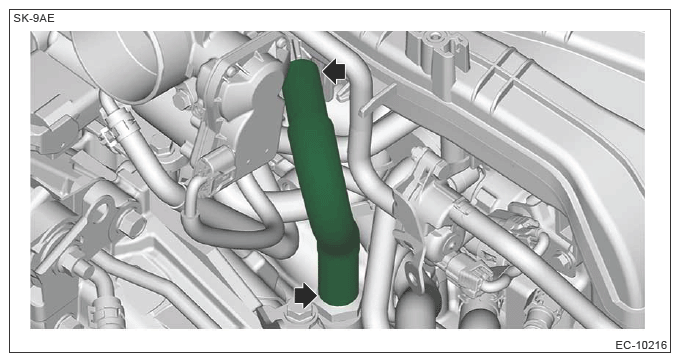

2.5 L model

Courtesy of SUBARU OF AMERICA, INC.
