2.5 L Model

WARNING: This page is about a different variant/trim than selected.

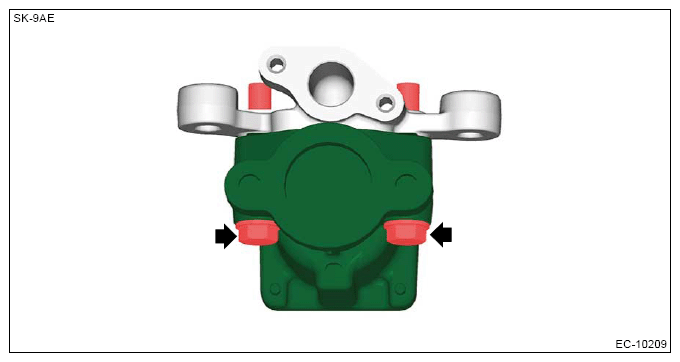

Using a new gasket, install the EGR control valve to the EGR pipe adapter.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

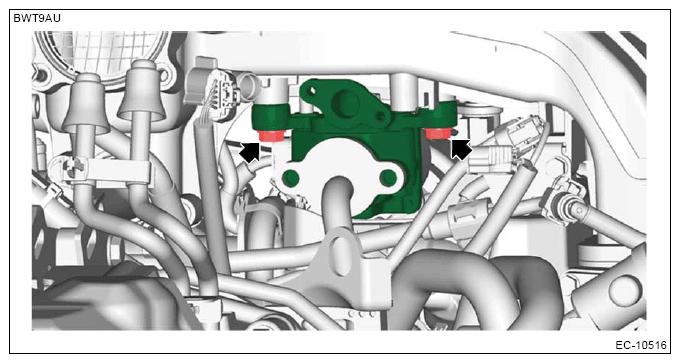

Install the EGR control valve to the intake manifold assembly.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

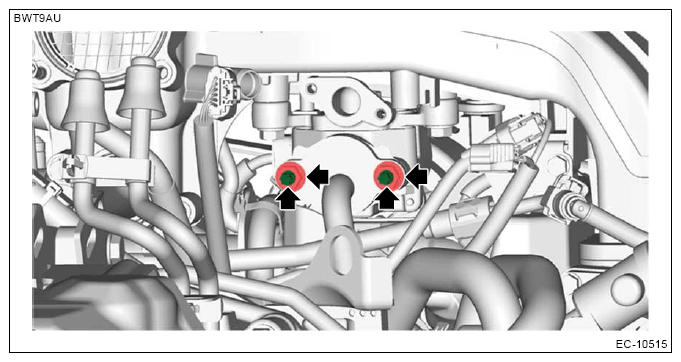

Set a new gasket, and install the stud bolts using TORX® E8.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Install the nuts securing the EGR cooler.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

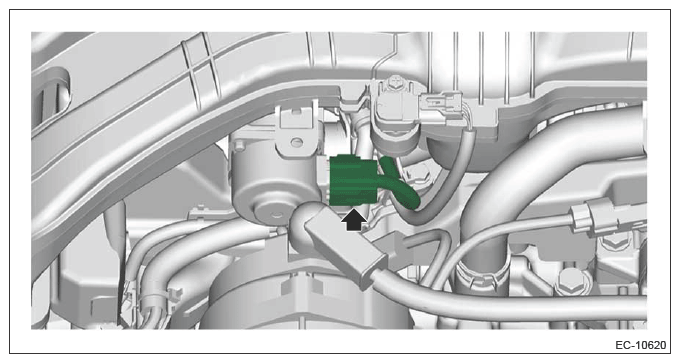

Connect the connector.

Courtesy of SUBARU OF AMERICA, INC.
Install the purge control valve. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO (EXCEPT FOR HEV))>PURGE CONTROL SOLENOID VALVE>REMOVAL>2.5 L MODEL .
Attach the PCV hose No. 1. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO (EXCEPT FOR HEV))>PCV HOSE>INSTALLATION>PCV HOSE NO. 1 .
Install the EGR pipe. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO (EXCEPT FOR HEV))>EGR PIPE>INSTALLATION .

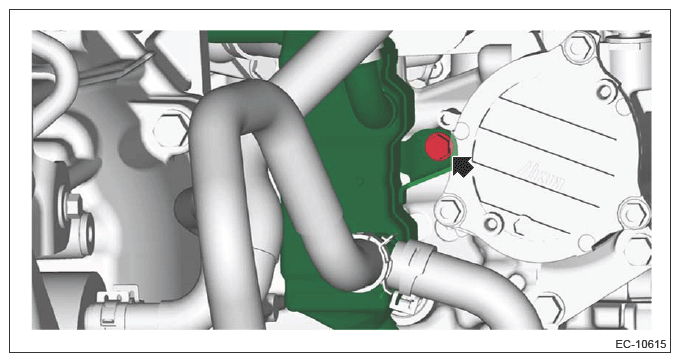

Tighten the bolts holding the EGR cooler to the cylinder head RH.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
