2.5 L Model

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G13875323Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13875324Courtesy of SUBARU OF AMERICA, INC.

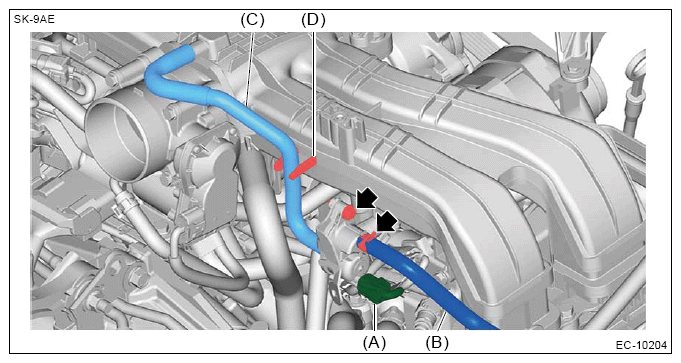

  4. Disconnect the connector (A), and disconnect the evaporation hose (B).
  5. Disconnect the vacuum hose (C) from the intake manifold assembly, and remove the vacuum hose (C) from the clip (D).
  6. Remove the bolt securing the purge control solenoid valve, and remove the purge control solenoid valve.
    G13224140Courtesy of SUBARU OF AMERICA, INC.

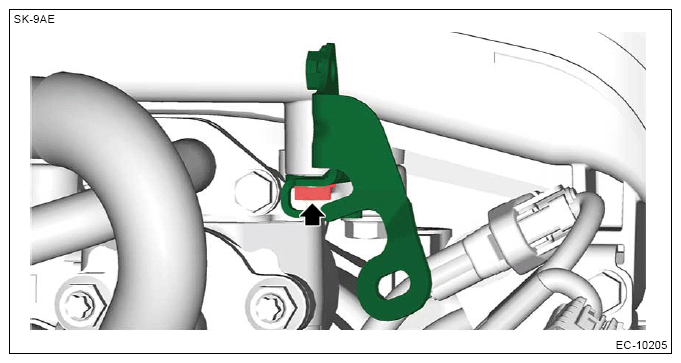

  7. Remove the purge control solenoid valve bracket.
    G13224141Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the vacuum hose from the purge control solenoid valve.
