Glove Box: Removal

NOTE: Refer to "Security and Locks" information for key cylinder replacement. Ref. to SECURITY AND LOCKS>Key Lock Cylinders>REPLACEMENT>GLOVE BOX LID .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pocket COMPL.
    1. Remove the damper assembly.
    2. Release the stoppers and remove the pocket COMPL by pulling it toward you.
    G11246529Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the cover side sill front FR and the cover side sill front RR. Ref. to EXTERIOR/INTERIOR TRIM>Lower Inner Trim>REMOVAL .
  4. Remove the panel instrument passenger.

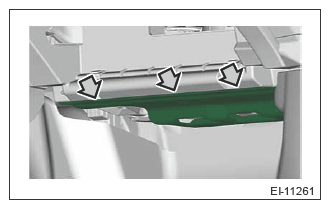

    1. Release the claws, and remove the under cover assembly passenger.
      G13200855Courtesy of SUBARU OF AMERICA, INC.
      NOTE: For models with foot light, disconnect the connector.

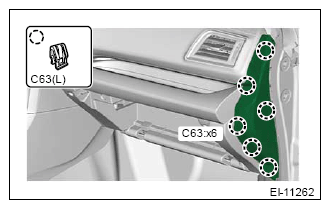

    2. Remove the clips, and remove the cover assembly instrument panel side RH.
      G13201610Courtesy of SUBARU OF AMERICA, INC.
      NOTE:
      • Use a plastic remover  .
      • If removing is difficult, remove the weather strip, then remove the part from the gap using a plastic remover  .

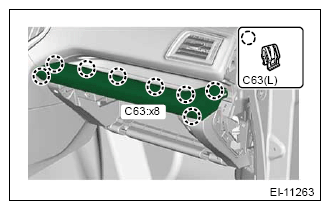

    3. Release the clips, and remove the ornament assembly passenger.
      G13201611Courtesy of SUBARU OF AMERICA, INC.
    4. Remove the glove box light LED, and disconnect the connector.

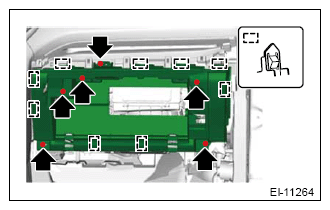

    5. Remove the screws and release the claws, remove the panel instrument passenger.
    G13201612Courtesy of SUBARU OF AMERICA, INC.
