Nozzle Wiper Arm Washer & Hose
CAUTION:
Do not remove the nozzle wiper arm washer from the arm assembly windshield wiper assistor.
If nozzle replacement is required, replace the arm assembly windshield wiper assistor as a unit.
If nozzle replacement is required, replace the arm assembly windshield wiper assistor as a unit.
- Remove the arm assembly windshield wiper. Ref. to WIPER AND WASHER SYSTEMS>Front Wiper Arm>REMOVAL .
- Remove the cowl panel side and the cowl panel assembly. Ref. to EXTERIOR/INTERIOR TRIM>Cowl Panel>REMOVAL
.CAUTION: Before removing the cowl panel, use an air blower and nylon brush to sweep gravel from the lower area of the front side of the glass.

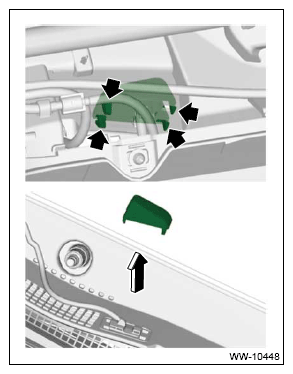

- Release the claws, and remove the cover joint from cowl panel assembly.
- Remove the hose wiper arm washer.
