Antenna Feeder Cord

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  • Be careful not to damage the airbag system harness when servicing the instrument panel. Damage may cause the system to malfunction.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE:
    • Shift the select lever into "N" before disconnecting the ground terminal from the battery sensor.
    • For the power seat model, remove the console box before removing the ground terminal from the battery sensor.
  2. Remove the panel COMPL instrument. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Assembly>REMOVAL .
  3. Remove the duct center ventilation front and the duct side ventilation RH. Ref. to AIR CONDITIONER>Heater Vent Duct>REMOVAL .
  4. Remove the cord assembly antenna feeder.

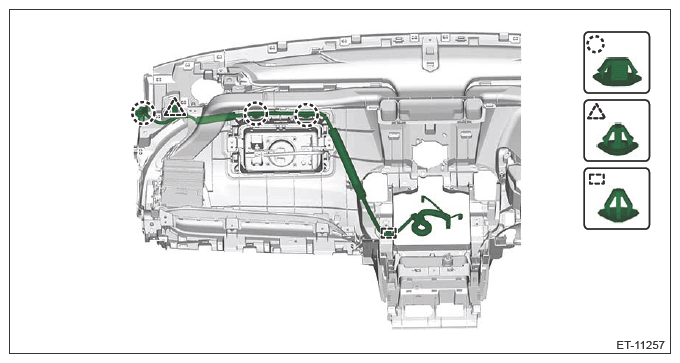

    1. Remove the harness clip, and remove the cord assembly antenna feeder.
G13865711Courtesy of SUBARU OF AMERICA, INC.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel sub assembly. Ref. to EXTERIOR/INTERIOR TRIM>Roof Trim>REMOVAL .
  3. Remove the cord assembly antenna feeder.
