• Center

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE:
    • Release the shift lock and shift the select lever to the "N" position. Refer to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
    • For the power seat model, remove the console box before removing the ground terminal from the battery sensor.
  2. Remove the cover assembly front and the console box assembly. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  3. Remove the cover center side. Refer to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>REMOVAL .
  4. Remove the duct console center.

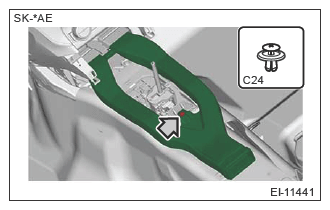

    1. Remove the clips, and remove the duct console center.
      G13592613Courtesy of SUBARU OF AMERICA, INC.
