Inhibitor Switch: Installation
WARNING: This page is about a different variant/trim than selected.
- Temporarily connect the inhibitor switch, and connect the connector.

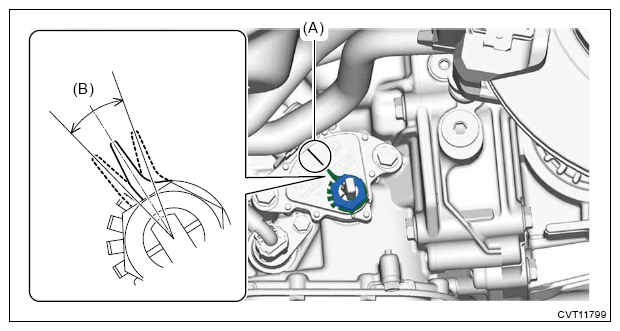

- Align the projection on the nut stopper with the marking line (A) on the switch body, and install the lock nut.NOTE: Because there is some play (B) in the nut stopper projection, align the center of the play range with the marking line (A).
- Tighten the nut stopper and lock nut.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)
- Tighten the bolts holding the inhibitor switch.
Tightening torque:
13 N.m (1.3 kgf-m, 9.6 ft-lb)
- Using a flat tip screwdriver or similar tool wrapped with protection tape, crimp the nut stopper.
- Install the shifter arm and fix with a new spring pin.
- Connect the select cable to the transmission main body.CAUTION: Do not apply excessive load while holding the part (a).
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Check the inhibitor switch position and adjust the N range position.
- Shift the select lever to "P range".
- Connect the battery ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
