N Range Position Adjustment

WARNING: This page is about a different variant/trim than selected.

Release the shift lock using a screwdriver, etc. and shift the select lever to the "N" range.

Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor cover.

Courtesy of SUBARU OF AMERICA, INC.
Loosen the bolts holding the inhibitor switch.

Courtesy of SUBARU OF AMERICA, INC.

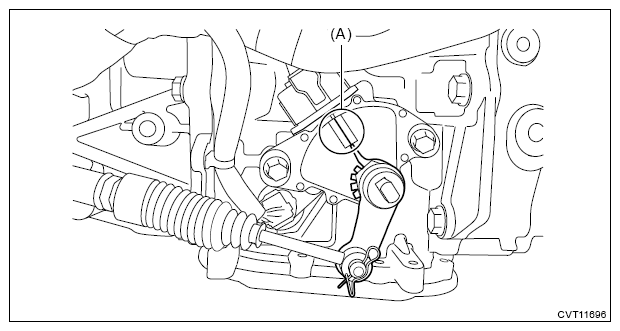

Align the projection on the nut stopper with the marking line (A) on the switch body.

Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts fastening the inhibitor switch in the sequence shown by the numbers in the figure.
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

Fig 1: Inhibitor Switch Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the inhibitor cover.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
