Extension Case Oil Seal: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Release the parking brake.
  2. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  3. Release the shift lock using a screwdriver, etc. and shift the select lever to the "N" range.
    G13233130Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the propeller shaft. Ref. to DRIVE SHAFT SYSTEM>PROPELLER SHAFT>REMOVAL .
  5. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .

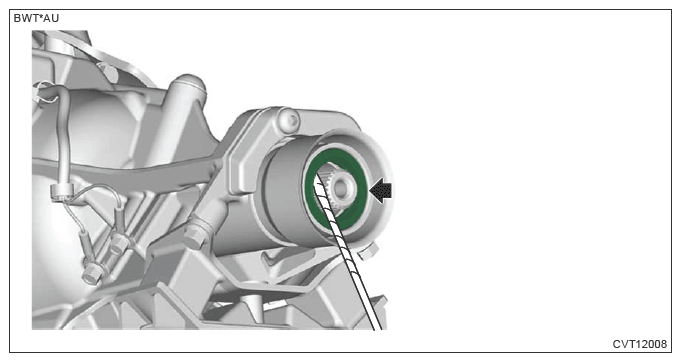

  6. Remove the extension case oil seal using a flat tip screwdriver wrapped with protection tape, etc.
    G13592011Courtesy of SUBARU OF AMERICA, INC.
  7. Using the ST, install a new extension case oil seal.
    NOTE: Apply ATF to the oil seal lip and peripheral surface.

    Preparation tool:

    ST: OIL SEAL INSTALLER (498057300)

    G13225669Courtesy of SUBARU OF AMERICA, INC.
  8. Install the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>INSTALLATION .
  9. Install the propeller shaft. Ref. to DRIVE SHAFT SYSTEM>PROPELLER SHAFT>INSTALLATION .
  10. Shift the select lever to "P range".
  11. Connect the battery ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  12. Apply the parking brake.
  13. Check the ATF level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TH2A)>AUTOMATIC TRANSMISSION FLUID>INSPECTION .
